# Relativistic average GAN Keras
The implementation [Relativistic average GAN](https://ajolicoeur.wordpress.com/relativisticgan/) with Keras
[[paper]](https://arxiv.org/abs/1807.00734)[[blog]](https://ajolicoeur.wordpress.com/relativisticgan/)[[original code(pytorch)]](https://github.com/AlexiaJM/RelativisticGAN)
## How to Run?
### Python3 Script
``` bash
mkdir result
python RaGAN_CustomLoss.py --dataset [dataset] --loss [loss]
python RaGAN_CustomLayers.py --dataset [dataset] --loss [loss]
```
[dataset]: mnist, *fashion_mnist*, cifar10
[loss]: *BXE* for Binary Crossentropy, LS for Least Squares
*italic arguments* are default
### Jupyter notebook
Custom Loss
[[Colab]](https://drive.google.com/file/d/11NlU_Z829NXrHCdWx4ROIIcmfnaxNdR2/view?usp=sharing)[[NBViewer]](https://nbviewer.jupyter.org/github/IShengFang/Relativistic-average-GAN-Keras/blob/master/RaGAN_with_Custom_Loss.ipynb)
Custom Layer
[[Colab]](https://drive.google.com/file/d/1pbUCguHX1h_yeDYMdFcYa0CYuZvtpUik/view?usp=sharing)[[NBViewer]](https://nbviewer.jupyter.org/github/IShengFang/Relativistic-average-GAN-Keras/blob/master/RaGAN_with_Custom_Layers.ipynb)
## Result
| 1 epoch | MNIST | Fashion MNIST | CIFAR10 |
| -------- | -------- | ------------- | -------- |
| Binary Cross Entropy | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/mnist_BXE/epoch_000.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/fashion_mnist_BXE/epoch_000.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/cifar10_BXE/epoch_000.png) |
|Least Square|![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/mnist_LS/epoch_000.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/fashion_mnist_LS/epoch_000.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/cifar10_LS/epoch_000.png) |
| 10 epoch | MNIST | Fashion MNIST | CIFAR10 |
| -------- | -------- | ------------- | -------- |
| Binary Cross Entropy | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/mnist_BXE/epoch_010.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/fashion_mnist_BXE/epoch_010.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/cifar10_BXE/epoch_010.png) |
|Least Square|![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/mnist_LS/epoch_010.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/fashion_mnist_LS/epoch_010.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/cifar10_LS/epoch_010.png) |
| 50epoch | MNIST | Fashion MNIST | CIFAR10 |
| -------- | -------- | ------------- | -------- |
| Binary Cross Entropy | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/mnist_BXE/epoch_049.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/fashion_mnist_BXE/epoch_049.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/cifar10_BXE/epoch_049.png) |
|Least Square|![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/mnist_LS/epoch_049.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/fashion_mnist_LS/epoch_049.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/cifar10_LS/epoch_049.png) |
| 100epoch | MNIST | Fashion MNIST | CIFAR10 |
| -------- | -------- | ------------- | -------- |
| Binary Cross Entropy | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/mnist_BXE/epoch_099.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/fashion_mnist_BXE/epoch_099.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/cifar10_BXE/epoch_099.png) |
|Least Square|![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/mnist_LS/epoch_099.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/fashion_mnist_LS/epoch_099.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/cifar10_LS/epoch_099.png) |

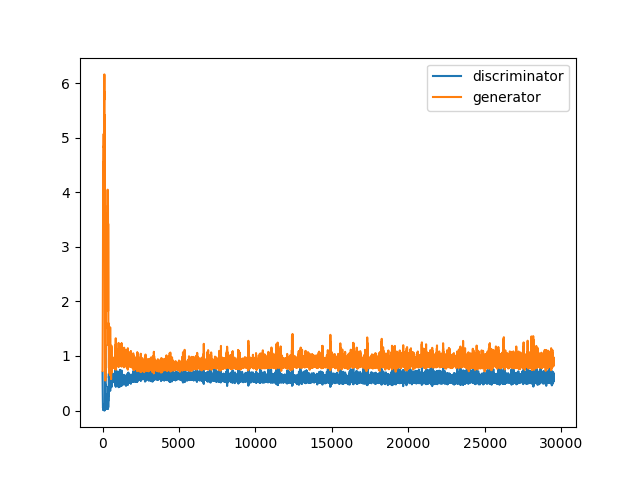

| Loss | MNIST | Fashion MNIST | CIFAR10 |
| -------- | -------- | ------------- | -------- |
| Binary Cross Entropy | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/mnist_BXE/loss.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/fashion_mnist_BXE/loss.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/cifar10_BXE/loss.png) |
|Least Square|![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/mnist_LS/loss.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/fashion_mnist_LS/loss.png ) | ![](https://raw.githubusercontent.com/IShengFang/Relativistic-average-GAN-Keras/master/result/cifar10_LS/loss.png) |
## What is Relativistic average GAN?
### TL;DR
![](https://ajolicoeur.files.wordpress.com/2018/06/screenshot-from-2018-06-30-11-04-05.png?w=656)
### What is different with original GAN
For better math equations rendering, check out [HackMD Version](https://hackmd.io/s/r1VlR5CBm)
#### GAN
The GAN is the two player game which subject as below
$$\max_G\min_D V(G,D)$$
$V(G,D)$ is a value function( aka loss or cost function)
$G:z \longmapsto x'$ is a generator, $z$ is a sample noise from the distribution we known(usually multidimensional Gaussian distribution). $x'$ is a fake data generated by the generator. We want $x'$ in the real data distribution.
$D:x\longmapsto[0,1]$ is a discriminator, which finds out that $x$ is a real data (output 1) or a fake data(output 0)
In the training iteration, we will train one neural network first(usual is discriminator), and train the other network. After a lot of iterations, we expect the last generator to map multidimensional Gaussian distribution to the real data distribution.
#### Relativistic average GAN (RaGAN)
RaGAN's Loss function does not optimize discriminator to distinguish data real or fake. Instead, RaGAN's discriminator distinguishes that "*real data* isn’t like *average fake data*" or "*fake data* isn’t like *average real data*".
>the discriminator estimates the probability that the given real data is more realistic than a randomly sampled fake data.
[paper subsection.4.1](https://arxiv.org/pdf/1807.00734.pdf#subsection.4.1)
Given Discriminator output $D(x)=\text{sigmoid}(C(x))$
Origin GAN Loss is as below,
$$L_D = -\mathbb{E}_{x_{real}\sim\mathbb{P}_{real}}[\log D(x_{real})]-\mathbb{E}_{x_{fake}\sim\mathbb{P}_{fake}}[\log ( 1-D(x_{fake}))]$$
$$L_G = -\mathbb{E}_{x_{fake}\sim\mathbb{P}_{fake}}[\log D(x_{fake})]$$
Relativistic average output is $$\tilde{D}(x_{real})=\text{sigmoid}(C(x_{real})-\mathbb{E}_{x_{fake}\sim\mathbb{P}_{fake}}C(x_{fake}))$$ and $$\tilde{D}(x_{fake})=\text{sigmoid}(C(x_{fake})-\mathbb{E}_{x_{real}\sim\mathbb{P}_{real}}C(x_{real}))$$
RaGAN's Loss is as below,
$$L_D = -\mathbb{E}_{x_{real}\sim\mathbb{P}_{real}}[\log \tilde{D}(x_{real})]-\mathbb{E}_{x_{fake}\sim\mathbb{P}_{fake}}[\log ( 1-\tilde{D}(x_{fake}))]$$
$$L_G = -\mathbb{E}_{x_{fake}\sim\mathbb{P}_{fake}}[\log \tilde{D}(x_{fake})]-\mathbb{E}_{x_{real}\sim\mathbb{P}_{real}}[\log ( 1-\tilde{D}(x_{real}))]$$
we can also add relativistic average in Least Square GAN or any other GAN
![](https://cdn-images-1.medium.com/max/800/1*QKG1fVOMjGlVUvICYmz8vQ.png)
Modified by [Jonathan Hui](https://medium.com/@jonathan_hui/gan-rsgan-ragan-a-new-generation-of-cost-function-84c5374d3c6e) from [Paper](https://arxiv.org/abs/1807.00734)
### How to implement with Keras?
We got loss, so just code it. :smile:
Just kidding, we have two approaches to implement RaGAN.
The important part of implementation is discriminator output.
$$\tilde{D}(x_{real})=\text{sigmoid}(C(x_{real})-\mathbb{E}_{x_{fake}\sim\mathbb{P}_{fake}}C(x_{fake}))$$ and $$\tilde{D}(x_{fake})=\text{sigmoid}(C(x_{fake})-\mathbb{E}_{x_{real}\sim\mathbb{P}_{real}}C(x_{real}))$$
We need to average $C(x_{real})$ and $C(x_{fake})$. We also need "minus" to get $C(x_{real})-\mathbb{E}_{x_{fake}\sim\mathbb{P}_{fake}}C(x_{fake})$ and $C(x_{fake})-\mathbb{E}_{x_{real}\sim\mathbb{P}_{real}}C(x_{real})$.
We can use keras.backend to deal with it, but that means we need to custom loss. We can also write custom layers to apply these computations to keras as a layer, and use Keras default loss to train the model.
1. Custom layer
- Pros:
- Train our RaGAN easily with keras default loss
- Cons:
- Write custom layers to implement it.
2. Custom Loss
- Pros:
- Do not need to write custom layers. Instead, we need write loss with keras.backend.
- Custom loss is easy to change loss.
- Cons:
- Write custom loss with keras.backend to implement it.
#### Code
##### Custom Loss
[[Colab]](https://drive.google.com/file/d/11NlU_Z829NXrHCdWx4ROIIcmfnaxNdR2/view?usp=sharing)[[NBViewer]](https://nbviewer.jupyter.org/github/IShengFang/Relativistic-average-GAN-Keras/blob/master/RaGAN_with_Custom_Loss.ipynb)[[python script]](https://github.com/IShengFang/Relativistic-average-GAN-Keras/blob/master/RaGAN_CustomLoss.py)
##### Custom Layer
[[Colab]](https://drive.google.com/file/d/1pbUCguHX1h_yeDYMdFcYa0CYuZvtpUik/view?usp=sharing)[[NBViewer]](https://nbviewer.jupyter.org/github/IShengFang/Relativistic-average-GAN-Keras/blob/master/RaGAN_with_Custom_Layers.ipynb)[[python script]](https://github.com/IShengFang/Relativistic-average-GAN-Keras/blob/master/RaGAN_CustomLayers.py)
