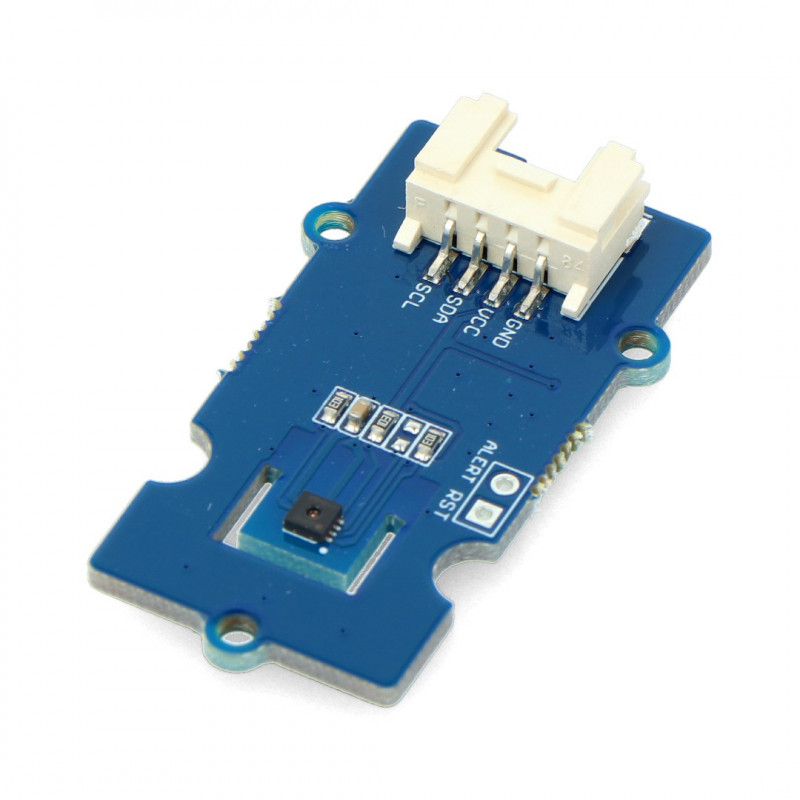

SHT35 → Temperature and Humidity Sensor

Sensirion Temperature/Humidity sensors are some of the finest & highest-accuracy devices you can get. And with a true I2C interface, reading the data is for easy. The SHTC3 sensor has an excellent ±2% relative humidity and ±0.2°C accuracy for most uses.

Install the Adafruit SHT31 library:

Copy/Paste this example and upload it to your board.







































#include <Arduino.h>
#include <Wire.h>
#include "Adafruit_SHT31.h"

Adafruit_SHT31 sht31 = Adafruit_SHT31();

void setup() {
  Serial.begin(115200);

  while (!Serial)
    delay(10);     // will pause Zero, Leonardo, etc until serial console opens

  Serial.println("SHT31 test");
  if (! sht31.begin(0x45)) {   // Set to 0x45 for alternate i2c addr
    Serial.println("Couldn't find SHT31");
    while (1) delay(1);
  }
}


void loop() {
  float t = sht31.readTemperature();
  float h = sht31.readHumidity();

  if (! isnan(t)) {  // check if 'is not a number'
    Serial.print("Temp *C = "); Serial.println(t);
  } else {
    Serial.println("Failed to read temperature");
  }

  if (! isnan(h)) {  // check if 'is not a number'
    Serial.print("Hum. % = "); Serial.println(h);
  } else {
    Serial.println("Failed to read humidity");
  }
  Serial.println();
  delay(1000);
}

Open the Serial Monitor (Tools -> Serial Monitor) and you should see the values appearing every second.
