workshop

URL

Service mesh

Image Not Showing Possible Reasons

The image file may be corrupted
The server hosting the image is unavailable
The image path is incorrect
The image format is not supported

Learn More →

Envoy

Image Not Showing Possible Reasons

The image file may be corrupted
The server hosting the image is unavailable
The image path is incorrect
The image format is not supported

Learn More →

術語	說明
Downstream	前端
Upstream	後端

Image Not Showing Possible Reasons

The image file may be corrupted
The server hosting the image is unavailable
The image path is incorrect
The image format is not supported

Learn More →

術語	說明	ex
Listener	前端監聽的位址	www.example.com, 123.123.123.123
Router	路由規則	443 -> 80, path strip, add/remove header …
Cluster	後端服務的集合	web server cluster
Endpoint	後端服務的port	80 port
Host	服務主體	web01, web02, web03

Envoy xDS API

CDS（Cluster Discovery Service）
EDS（Endpoint Discovery Service）
HDS（Health Discovery Service）
LDS（Listener Discovery Service）
MS（Metric Service）
RLS（Rate Limit Service）
RDS（Route Discovery Service）
SDS（Secret Discovery Service）
ADS (Aggregated Discovery Service)

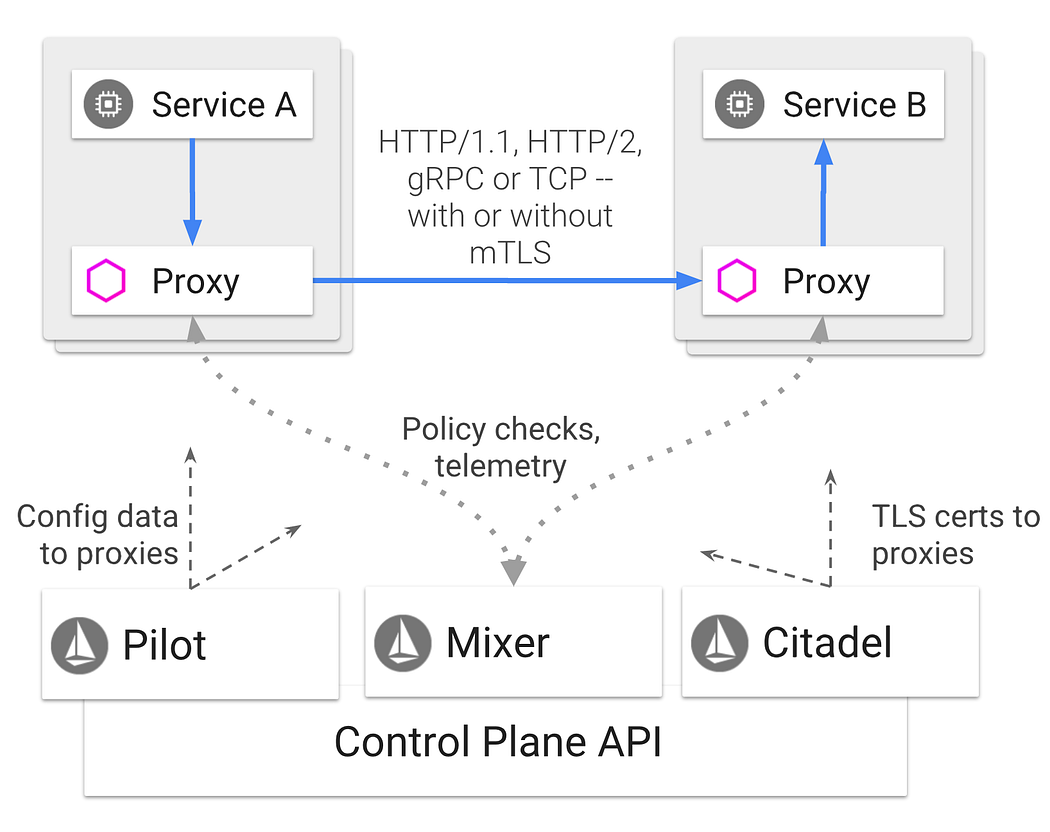

Istio

Mixer: 負責整個服務網格中的存取控制，使用策略，數據收集
Pilot：提供流量控制，路由，超時，重試，斷路器
Citadel：負責服務之間認證以及憑證管理等功能

Image Not Showing Possible Reasons

The image file may be corrupted
The server hosting the image is unavailable
The image path is incorrect
The image format is not supported

Learn More →

Image Not Showing Possible Reasons

The image file may be corrupted
The server hosting the image is unavailable
The image path is incorrect
The image format is not supported

Learn More →

術語	縮寫	說明
ingress gateway	gw	前端
VirtualService	vs	後端
DestinationRule	dr	路由規則
egress gateway	x	外部資源
serviceEntry	x	外部資源

Install istio

下載最新版本


curl -L https://istio.io/downloadIstio | sh -

下載指定版本


curl -L https://istio.io/downloadIstio | ISTIO_VERSION=1.6.8 TARGET_ARCH=x86_64 sh -

設定環境變數


export PATH=$HOME/istio-1.7.3/bin:$PATH

istio安裝參數





istioctl install \
    --set values.global.proxy.holdApplicationUntilProxyStarts=true \
    --set values.gateways.istio-ingressgateway.type=NodePort \
    --set meshConfig.accessLogFile=/dev/stdout \
    --set meshConfig.accessLogEncoding=JSON

參數	說明
holdApplicationUntilProxyStarts	啟動完istio元件後，再啟動app pod
istio-ingressgateway.type	ingressgateway type
meshConfig.accessLogFile	啟動envoy log
meshConfig.accessLogEncoding	log type

更新ingress-gateway的nodeport為30080


kubectl patch svc istio-ingressgateway --patch '{"spec":{"ports":[{"port": 80, "nodePort":30080}]}}' -n istio-system

Addon


kubectl apply -f istio-1.7.3/samples/addons

Sidecar injection









# 手動注入
istioctl kube-inject -f deployment.yaml | kubectl apply -f -

# 自動注入
kubectl label namespace default istio-injection=enabled

# spec.temeplate.metadata.annotation
sidecar.istio.io/inject: "false"

sidecar injection
Istio injector annotations don't work

結論: 啟用namespace自動注入，再用annotation控制

Ingress Gateway







cd ~/istio-1.7.3/samples/addons

kubectl apply -f prometheus.yaml
kubectl apply -f grafana.yaml
kubectl apply -f jaeger.yaml

kubectl get pod,svc -n istio-system














NAME                                        READY   STATUS    RESTARTS   AGE
pod/grafana-75b5cddb4d-r4jd6                1/1     Running   0          82s
pod/istio-ingressgateway-78b6cf98f4-5dm5j   1/1     Running   0          2m41s
pod/istiod-fb4fbff6b-v7mcv                  1/1     Running   0          2m45s
pod/jaeger-5795c4cf99-8c969                 1/1     Running   0          67s
pod/prometheus-9d5676d95-5h2gr              2/2     Running   0          75s

NAME                           TYPE           CLUSTER-IP      EXTERNAL-IP   PORT(S)                                                      AGE
service/grafana                ClusterIP      10.100.49.43    <none>        3000/TCP                                                     82s
service/istio-ingressgateway   LoadBalancer   10.108.59.56    localhost     15021:32386/TCP,80:30018/TCP,443:30012/TCP,15443:31938/TCP   2m41s
service/istiod                 ClusterIP      10.97.134.135   <none>        15010/TCP,15012/TCP,443/TCP,15014/TCP,853/TCP                2m45s
service/prometheus             ClusterIP      10.100.21.203   <none>        9090/TCP                                                     75s
service/tracing                ClusterIP      10.98.158.159   <none>        80/TCP                                                       66s
service/zipkin                 ClusterIP      10.110.33.86    <none>        9411/TCP                                                     66s






































































apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
  name: addon-gateway
spec:
  selector:
    istio: ingressgateway
  servers:
  - port:
      number: 80
      name: http
      protocol: HTTP
    hosts:
    - prometheus.127.0.0.1.nip.io
    - grafana.127.0.0.1.nip.io
    - jaeger.127.0.0.1.nip.io
    - whoami.127.0.0.1.nip.io
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: grafana
spec:
  hosts:
  - grafana.127.0.0.1.nip.io
  gateways:
  - addon-gateway
  http:
  - route:
    - destination:
        host: grafana.istio-system.svc.cluster.local

---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: jaeger
spec:
  hosts:
  - jaeger.127.0.0.1.nip.io
  gateways:
  - addon-gateway
  http:
  - name: default
    match:
      - uri:
          prefix: /jaeger
    route:
    - destination:
        host: tracing.istio-system.svc.cluster.local

---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: prometheus
spec:
  hosts:
  - prometheus.127.0.0.1.nip.io
  gateways:
  - addon-gateway
  http:
  - match:
    - headers:
        user-agent:
          exact: "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_10; rv:33.0) Gecko/20100101 Firefox/33.0"
    route:
    - destination:
        host: prometheus.istio-system.svc.cluster.local


kubectl get gw,vs







NAME                                        AGE
gateway.networking.istio.io/addon-gateway   2s

NAME                                            GATEWAYS          HOSTS                           AGE
virtualservice.networking.istio.io/grafana      [addon-gateway]   [grafana.127.0.0.1.nip.io]      2s
virtualservice.networking.istio.io/jaeger       [addon-gateway]   [jaeger.127.0.0.1.nip.io]       2s
virtualservice.networking.istio.io/prometheus   [addon-gateway]   [prometheus.127.0.0.1.nip.io]   2s

Traffic Management

traefik/whoami github

deployment

template.metadata.annotations
labes: app, version














































apiVersion: apps/v1
kind: Deployment
metadata:
  name: whoami-v1
spec:
  selector:
    matchLabels:
      app: whoami
      version: v1
  template:
    metadata:
      annotations:
        sidecar.istio.io/inject: "true"
      labels:
        app: whoami
        version: v1
    spec:
      containers:
      - name: whoami
        image: whoami:v1
        ports:
        - containerPort: 80
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: whoami-v2
spec:
  selector:
    matchLabels:
      app: whoami
      version: v2
  template:
    metadata:
      labels:
        app: whoami
        version: v2
      annotations:
        sidecar.istio.io/inject: "true"
    spec:
      containers:
      - name: whoami
        image: whoami:v2
        ports:
        - containerPort: 80

service











apiVersion: v1
kind: Service
metadata:
  name: whoami
spec:
  selector:
    app: whoami
  ports:
  - port: 80
    targetPort: 80

virtual service






















# See more at https://istio.io/docs/reference/config/networking/virtual-service/
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: whoami
spec:
  hosts:
  - whoami.127.0.0.1.nip.io
  gateways:
  - addon-gateway
  http:
  - name: v1
    timeout: 2s
    route:
    - destination:
        host: whoami
        subset: v1
      weight: 90
    - destination:
        host: whoami
        subset: v2
      weight: 10

destination rule















# See more at https://istio.io/docs/reference/config/networking/destination-rule/
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: whoami
spec:
  host: whoami
  subsets:
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2

kubectl get pod,svc,vs,dr
















NAME                             READY   STATUS    RESTARTS   AGE
pod/whoami-v1-79f555c9bf-xlxcw   2/2     Running   0          62s
pod/whoami-v2-5d4956f4c7-cnb9j   2/2     Running   0          62s

NAME                 TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)   AGE
service/kubernetes   ClusterIP   10.96.0.1      <none>        443/TCP   6d1h
service/whoami       ClusterIP   10.109.26.84   <none>        80/TCP    62s

NAME                                            GATEWAYS          HOSTS                           AGE
virtualservice.networking.istio.io/grafana      [addon-gateway]   [grafana.127.0.0.1.nip.io]      31m
virtualservice.networking.istio.io/jaeger       [addon-gateway]   [jaeger.127.0.0.1.nip.io]       31m
virtualservice.networking.istio.io/prometheus   [addon-gateway]   [prometheus.127.0.0.1.nip.io]   31m
virtualservice.networking.istio.io/whoami       [addon-gateway]   [whoami.127.0.0.1.nip.io]       62s

NAME                                         HOST     AGE
destinationrule.networking.istio.io/whoami   whoami   62s
