Argo CD

李俊毅
Wed, Sep 16, 2020 4:57 PM


Agenda

  • 介紹
  • 架構
  • 建置
  • 通知
  • 監控
  • 擴展
  • 問題

介紹


Argo CD是用於Kubernetes的聲明性GitOps持續交付工具


什麼是 GitOps

GitOps 是 Weaveworks 提出的一種持續交付(CD)的概念,透過 Git 來聲明基礎設施(infrastructure)和應用程序(applications)希望的狀態

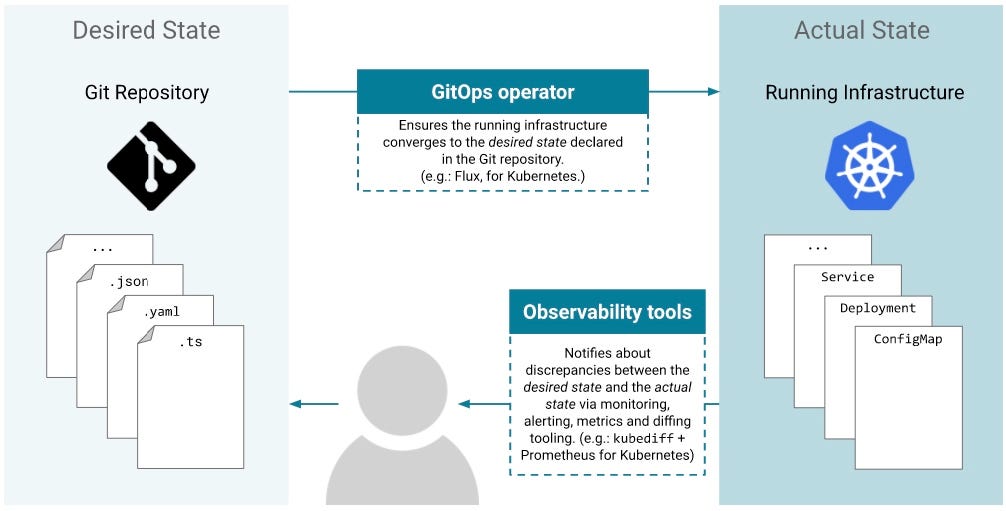

GitOps 概念

Image Not Showing Possible Reasons
  • The image file may be corrupted
  • The server hosting the image is unavailable
  • The image path is incorrect
  • The image format is not supported
Learn More →


GitOps 運作模式

Image Not Showing Possible Reasons
  • The image file may be corrupted
  • The server hosting the image is unavailable
  • The image path is incorrect
  • The image format is not supported
Learn More →


架構


Image Not Showing Possible Reasons
  • The image file may be corrupted
  • The server hosting the image is unavailable
  • The image path is incorrect
  • The image format is not supported
Learn More →


API Server

API服務器是gRPC / REST服務器,它公開了Web UI,CLI和CI / CD系統使用的API。它具有以下職責:

  • application management and status reporting
  • invoking of application operations (e.g. sync, rollback, user-defined actions)
  • repository and cluster credential management (stored as K8s secrets)
  • authentication and auth delegation to external identity providers
  • RBAC enforcement
  • listener/forwarder for Git webhook events

Repository Server

儲存庫服務器是一個內部服務,用於維護保存應用程序清單的Git儲存庫的本地緩存。提供以下輸入時,它負責生成和返回Kubernetes清單:

  • repository URL
  • revision (commit, tag, branch)
  • application path
  • template specific settings: parameters, ksonnet environments, helm values.yaml

Application Controller

應用程序控制器是Kubernetes控制器,它持續監視正在運行的應用程序,並將當前的活動狀態與所需的目標狀態(如回購中所指定的)進行比較。它檢測【OutOfSync】應用程序狀態並有選擇地採取糾正措施。它負責為生命週期事件(PreSync,Sync,PostSync,SyncFail)調用任何用戶定義的掛鉤。


生命週期

  • 【PreSync】在部署新版本的應用程序之前,使用掛鉤執行數據庫架構遷移。
  • 使用【Sync】鉤子編排比Kubernetes滾動更新策略更複雜的複雜部署。
  • 【PostSync】部署後使用掛鉤運行集成和運行狀況檢查。
  • 【SyncFail】如果同步操作失敗,則使用掛鉤運行清理或終結器邏輯。PS: SyncFail鉤子僅從v1.2開始可用

特性

  • 將應用程序自動部署到指定的目標環境
  • 支持多種配置管理/模板工具(Kustomize,Helm,Ksonnet,Jsonnet,plain-YAML)
  • 能夠管理和部署到多個集群
  • 支持身份驗證
  • 多租戶和RBAC授權策略
  • 透過Git存儲庫中提交的任何應用程序配置進行 Rollback/Roll-anywhere
  • 自動或手動將應用程序同步到所需狀態
  • 透過 Web UI 提供應用程序活動的實時視圖
  • 提供 CLI 來自動化與CI集成

  • Webhook集成
  • PreSync,Sync,PostSync掛鉤可支持複雜的應用程序推出(例如,藍色/綠色和金絲雀升級)
  • 普羅米修斯指標

建置


安裝 Argo CD CLI

brew install argocd

參考文獻


建置 Argo CD 服務(Non-HA)

kubectl create namespace argocd
kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml

建置 Argo CD 服務(HA)

kubectl create namespace argocd
kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/v1.7.6/manifests/ha/install.yaml

取得登入Server密碼,帳號 admin

kubectl get pods -n argocd -l app.kubernetes.io/name=argocd-server -o name | cut -d'/' -f 2

設定 Repositories


Image Not Showing Possible Reasons
  • The image file may be corrupted
  • The server hosting the image is unavailable
  • The image path is incorrect
  • The image format is not supported
Learn More →


將私鑰填入欄中,公鑰需設定在azure devops上

Image Not Showing Possible Reasons
  • The image file may be corrupted
  • The server hosting the image is unavailable
  • The image path is incorrect
  • The image format is not supported
Learn More →


設定Applications


Image Not Showing Possible Reasons
  • The image file may be corrupted
  • The server hosting the image is unavailable
  • The image path is incorrect
  • The image format is not supported
Learn More →


Image Not Showing Possible Reasons
  • The image file may be corrupted
  • The server hosting the image is unavailable
  • The image path is incorrect
  • The image format is not supported
Learn More →


Image Not Showing Possible Reasons
  • The image file may be corrupted
  • The server hosting the image is unavailable
  • The image path is incorrect
  • The image format is not supported
Learn More →


Image Not Showing Possible Reasons
  • The image file may be corrupted
  • The server hosting the image is unavailable
  • The image path is incorrect
  • The image format is not supported
Learn More →


配置 Argo CD 多租戶


登入Argo CD server

argocd login <ARGOCD_SERVER_IP>

註冊k8s群集

argocd cluster add <CLUSTER_NAME>

通知


建立 argocd notifications 服務

kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj-labs/argocd-notifications/stable/manifests/install.yaml

設定觸發條件

apiVersion: v1
kind: ConfigMap
metadata:
  name: argocd-notifications-cm
  namespace: argocd
data:
  config.yaml: |
    triggers:
      - name: on-sync-succeeded
        enabled: true

設定發送渠道,以slack為例


0.添加 annotations 到 Argo CD應用程序或項目來訂閱通知

metadata:
  annotations:
      recipients.argocd-notifications.argoproj.io:slack:<my-channel>

1.創建 Slack 應用程式 https://api.slack.com/apps?new_app=1


2.創建完畢後設定 OAuth & Permissions


3.發送slack權限需添加 chat:write:bot,如要在Slack通知服務中使用可選的用戶名和圖標替代要添加 chat:write.customize


4.滾動回到頂部,單擊“將應用程序安裝到工作區”按鈕並確認安裝


5.安裝完成後,複製OAuth令牌


6.最後,使用OAuth令牌在argocd-notifications-secret秘密中配置Slack集成

apiVersion: v1
kind: Secret
metadata:
  name: argocd-notifications-secret
stringData:
  notifiers.yaml: |
    slack:
      token: <my-token>
      username: <override-username> # optional username
      icon: <override-icon> # optional icon for the message (supports both emoij and url notation)

監控


設定 Prometheus config

Argocd

argocd-metrics:8082/metrics
argocd-server-metrics:8083/metrics

Argocd-notifications

argocd-notifications-controller-metrics:9001

匯入 Grafana dashboard


Argocd

https://github.com/argoproj/argo-cd/blob/master/examples/dashboard.json


Argocd-notifications

https://argoproj-labs.github.io/argocd-notifications/grafana-dashboard.json


擴展

因gitops有聲明式特性不能直接用HPA,需額外設定

  • 在 Application 新增過濾條件
  • 安裝 argo-rollouts

在 Application 新增過濾條件

spec:
  ignoreDifferences:
    - group: apps
      kind: Deployment
      jsonPointers:
        - /spec/replicas
    - group: apps
      kind: StatefulSet
      jsonPointers:
        - /spec/replicas

安裝 argo-rollouts

https://argoproj.github.io/argo-rollouts/


建置

kubectl create namespace argo-rollouts
kubectl apply -n argo-rollouts -f https://raw.githubusercontent.com/argoproj/argo-rollouts/stable/manifests/install.yaml
