最大公因數特性和實作考量

貢獻者: jserv, TibaChang, Tcc0403

簡介

本文探討最大公因數 (Greatest Common Divisor, GCD) 特性,考慮微處理器架構實作帶來的效能衝擊,並探討如何運用 Linux 核心提供的 perf 工具進行效能分析並改進。

Greatest Common Divisor 中譯「最大公因數」,簡稱 GCD。
給定整數

a,b,二者各自有自己的因數[1],取相同的因數中最大的數,即最大公因數
gcd(a,b)

GCD 性質

  • gcd(a,b)=gcd(b,a)
  • gcd(a,0)=|a|
  • gcd(a,b)=gcd(a,b%a)

% 是取餘數運算,表示存在
k
滿足
0b%a=bka<a

Euclidean algorithm

歐幾里得法,也就是「輾轉相除法」

給定整數

a,b 求出
gcd(a,b)

a0=a,b0=b,根據上述 GCD 性質:
gcd(a0,b0)=gcd(b0%a0=b1,a0)gcd(b1,a0)=gcd(a0%b1=a1,b1)gcd(a1,b1)=gcd(b1%a1=b2,a1)gcd(ai,bi)=gcd(bi%ai=ai+1,bi)gcd(0,bn)=|bn|

[2]

展示動畫

綜合上面過程,可得程式碼實作:

int gcd(int a, int b)
{
    return a ? gcd(b % a, a) : b;
}

Bezout's Theorem

對於所有整數

a,b,存在整數
x,y
使得
ax+by=gcd(a,b)

Extended Euclidean algorithm

給定整數

a,b 求出整數
x,y
滿足
ax+by=gcd(a,b)

g=gcd(a,b),配合上述 Bezout's Theorem 可得:
0xn+gyn=g

此處
xnZ,yn=1

xn 為任意整數

而根據 GCD 性質

gcd(ai,bi)=gcd(bi%ai,ai)
以及
bi%ai=bibiaiai

得到
g=xj(bi%ai)+yjai=xj(bibiaiai)+yjai=xjbi+(yjbiaixj)ai

也就是說

g=aixj1+biyj1 for {xj1=yjbiaixjyj1=xj

綜合上述過程:

/* It uses pointers to return multiple values */
int extended_gcd(int a, int b, int *x, int *y)
{
    if (a == 0) {
        *x = 0;
        *y = 1;
        return b;
    }

    int _x, _y;
    int gcd = extended_gcd(b % a, a, &_x, &_y);

    *x = _y - (b/a) * _x;
    *y = _x;

    return gcd;
}

延伸閱讀:

GCD 實作和微處理器指令

回顧歐幾里得法:

  1. 大數 := 大數 - 小數
  2. 若「最大」和「最小」兩數相同,那麼它就是最大公因數,否則,回到第 1 步

示範 GCD(48, 40) 的計算過程

  • 48 - 40, 40
    8, 40
  • 8 != 40, 於是重複上述動作: 40 - 8, 8
    32, 8
  • 8 != 32, 於是重複上述動作: 32 - 8, 8
    24, 8
  • 8 != 24, 於是重複上述動作: 24 - 8, 8
    16, 8
  • 8 != 16, 於是重複上述動作: 16 - 8, 8
    8, 8
  • 8 == 8 成立,於是 8 為 GCD

用 C 語言實現歐幾里得法: (v1)

int findGCD(int a, int b)
{
    while (1) {
        if (a > b) a -= b;
        else if (a < b) b -= a;
        return a;
    }
}

針對 Pentium 4 硬體的實驗

以 Intel C compiler 產生的機械碼來說: (Pentium 4)

資料來源: The Software Optimization Cookbook: High Performance Recipes for IA-32 Platforms, 2nd Edition
針對 2004 年的個人電腦

指令 數量 延遲 cycle count
減法 5 1 5
比較 5 1 5
分支 14 1 14
其他 0 1 0
24

改成 mod 操作的 C 語言程式如下: (v2)

int findGCD(int a, int b)
{
    while (1) {
        a %= b;
        if (a == 0) return b;
        if (a == 1) return 1;
        b %= a;
        if (b == 0) return a;
        if (b == 1) return 1;
    }
}

以 Intel C compiler 產生的機械碼來說:

指令 數量 延遲 cycle count
mod (整數除法) 2 68 136
比較 3 1 3
分支 3 1 3
其他 6 1 6
148

若可排除整數除法和減法的負擔,得到以下實作: (v3)

int findGCD(int a, int b)
{
    while (1) {
        if (a > (b * 4)) {
            a %= b;
            if (a == 0) return b;
            if (a == 1) return 1;
        } else if (a >= b) {
            a -= b;
            if (a == 0) return b;
            if (a == 1) return 1;
        }
        if (b > (a * 4)) {
            b %= a;
            if (b == 0) return a;
            if (b == 1) return 1;
        } else if (b >= a) {
            b -= a;
            if (b == 0) return a;
            if (b == 1) return 1;
        }
    }
}

可得到更快的實作:

    v1: 14.56s
    v2: 18.55s
    v3: 12.14s

上述都是針對 2004 年的個人電腦所得的實驗結果。

針對 Arm Cortex-A8 進行實驗

採用組合語言撰寫 (GCD 的部份),由於 Cortex-A8 不支援 idiv (要在 ARM Cortex-A15 或 A7 以上才有),因此改用以 Arm 組合語言實作

實驗方法

  • 圖上一個點,代表 GCD (big, small) 中的 big,會尋找比它小的所有正整數(>1)的GCD所需的時間「總和」
  • 若存在 big=9995,那麼會找 9993 組 GCD,small 的範圍從 2 到 9994
    • 如: (9995,2), (9995,3), (9995,4), , (9995,9994)
  • 所以 big 越大,找尋的組數越多,整體趨勢微微上升(從左到右)是正常的
  • 重點是比較各演算法的趨勢

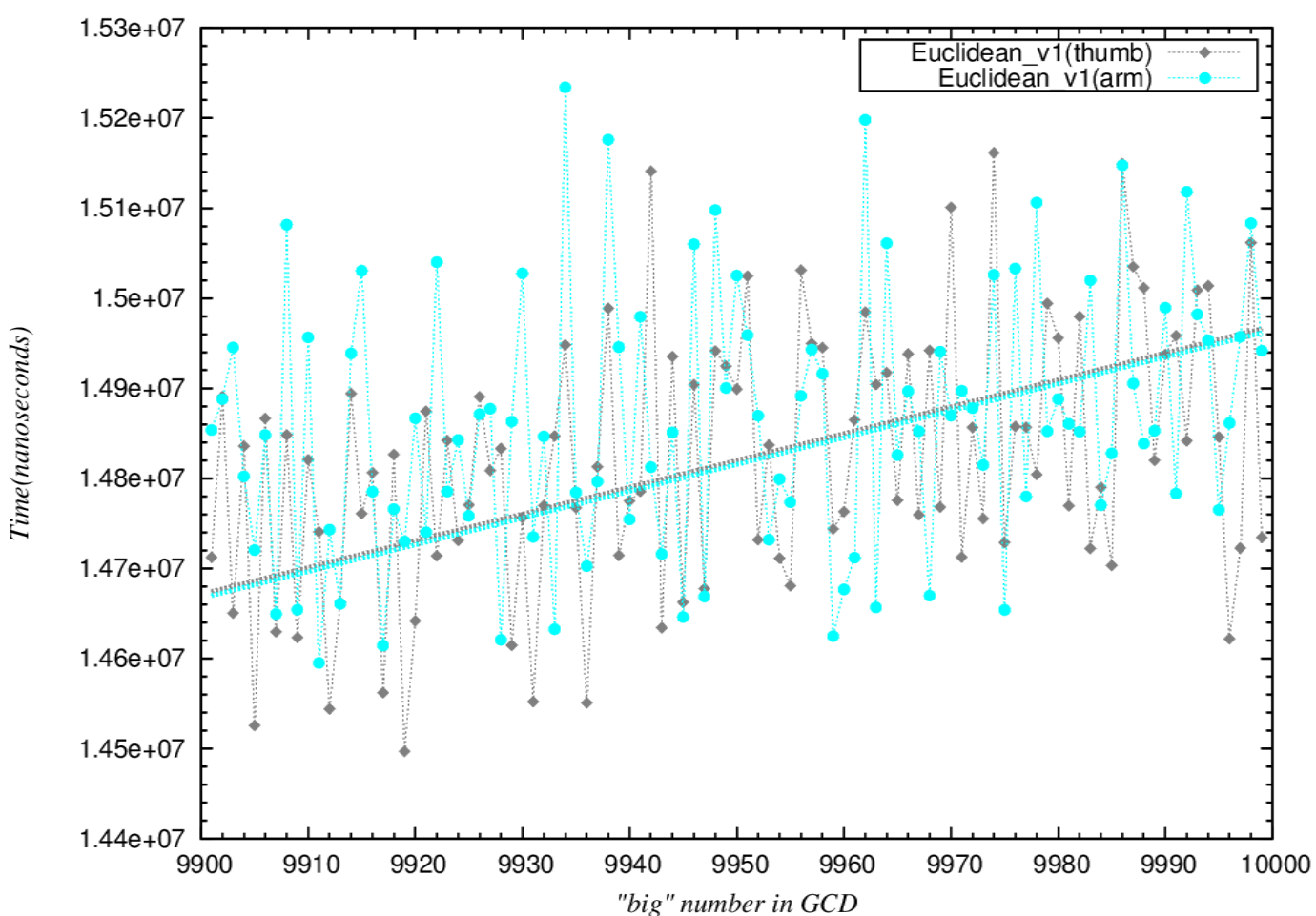

ARM vs. Thumb instruction

  • ARM 指令執行較快
  • 直線為 curve fitting 的結果 (時間越低,效能越高)


Assembly

MOD:

@ Entry  r0: low (remainder low) must be postive<input:Dividend>
@        r1: high (remainder high) any number
@        r2: Divisor (divisor) must be non-zero and
@            positive<input:Divisor>

    low .req r0;
    high .req r1;
    divisor .req r2;

    mov high,#0
    .rept 33    @ repeat 33 times
        subs high, high, divisor    @ remainder = remainder - divisor
        it lo
        addlo high, high, divisor
        @ low << 1; ((high-divisor) > 0) ? (new bit = 1) : (new bit = 0)
        adcs low, low, low
        @ divisor >> 1 == high(64bit for high & low) << 1
        adc high, high, high
    .endr

    @ shift remainder to correct position
    @ because last divide don't know this is the last divide,
    @ it still prepare for the next divide<shift>)
    lsr high, #1

@ Exit   r0: Quotient (remainder low)
@        r1: remainder (remainder high)
    mov pc, lr

Euclidean(thumb) V.S. mod(thumb) V.S. mod_minus(thumb)

不符合預期的原因推估

  • v3 版本的 branch 過多(if,else),thumb 的 branch 效能不佳,導致拉低平均
    • if 數量比較(一個 loop)
      • v1 : 3 個
      • v3 : 7 個


Euclidean(arm) V.S. mod(arm) V.S. mod_minus(arm)

比較

  • 與 thumb 版本
    • arm 的 branch 效能較佳,所以 v3 版本速度改善最多,這裡符合預期
  • v1 輸給 v2
    • arm 的 v1 與 thumb 的 v1 相比,只有些許提昇 (對照第一張圖),但是 mod 卻提昇較多(幾乎是半張圖片的範圍),導致這個結果
  • curve fitting

C 語言

  • arm-angstrom-linux-gnueabi-gcc 內的除法經過最佳化後,效能比減法更佳


  • arm-linux-gnueabihf-gcc(linaro) (without vfpv3)
    • 上下圖比較,可看到整體在 arm-angstrom-linux-gnueabi-gcc 效能比較好
      • 即使在這裡,單純除法比單純減法(的演算法)還快
      • 可是綜合起來看 v3 更快(符合預測)


  • arm-linux-gnueabihf-gcc(linaro) (with vfpv3)
    • mod 加快,減法變慢
    • 開了導致反效果


Binary GCD

Binary GCD Algorithm

binary GCD 的精神就是當兩數為偶數時,必有一

2 因子。
gcd(x,y)=2·gcd(x2,y2)

且一數為奇數另一數為偶數,則無
2
因子。
gcd(x,y)=gcd(x,y2)

於是我們可以改良為:

even_factor=min(ctz(x),ctz(y))gcd(x,y)=even_factor·gcd((xeven_factor),(yeven_factor))

其中符號

是 right shift。
剩下的過程就直接採用 Euclidean algorithm 的作法即可。

注意,僅在微處理器具備有效的 ctz 指令時,Binary GCD 才會展現相較於 Euclidean 的優勢,這也是為何 Linux 核心提供二種 gcd 實作

unsigned long gcd(unsigned long a, unsigned long b)
{
    unsigned long r = a | b;
    if (!a || !b) return r;
    b >>= __builtin_ctzl(b);
    if (b == 1) return r & -r;
    for (;; a -= b) {
        a >>= __builtin_ctzl(a);
        if (a == 1) return r & -r;
        if (a == b) return a << __builtin_ctzl(r);
        if (a < b) { unsigned long t = a; a = b; b = t; }
    }
}

延伸閱讀:

改進實作效能

bingcd

it requires GCC or Clang, a 64-bit x86 architecture, and a target CPU that supports the BMI2 opcodes (i.e. Haswell or later, in the line of Intel CPU).

考慮以下實作:

#include <stdint.h>
uint64_t gcd64(uint64_t u, uint64_t v)
{
    if (!u || !v) return u | v;
    int shift;
    for (shift = 0; !((u | v) & 1); shift++) {
        u /= 2, v /= 2;
    }
    while (!(u & 1))
        u /= 2;
    do {
        while (!(v & 1))
            v /= 2;
        if (u < v) {
            v -= u;
        } else {
            uint64_t t = u - v;
            u = v;
            v = t;
        }
    } while (v);
    return u<<shift;
}

GCD 演算法

  1. If both x and y are 0, gcd is zero
    gcd(0,0)=0
    .
  2. gcd(x,0)=x
    and
    gcd(0,y)=y
    because everything divides 0.
  3. If x and y are both even,
    gcd(x,y)=2×gcd(x2,y2)
    because
    2
    is a common divisor. Mulitplication with
    2
    can be done with betwise shift operator.
  4. If x is even and y is odd,
    gcd(x,y)=gcd(x2,y)
    .
  5. On similar lines, if x is odd and y is even, then
    gcd(x,y)=gcd(x,y2)
    . It is because
    2
    is not a common divisor.

以下分段說明:

if (!u || !v) return u | v;

對應至 GCD 演算法第 2 點

  • gcd(x,0)=x
    and
    gcd(0,y)=y
    because everything divides 0.

若 u 和 v 中其中一數為 0 ,則直接回傳另一數

x | 0 會得到 x

int shift;
for (shift = 0; !((u | v) & 1); shift++) {
    u /= 2, v /= 2;
}

對應至 GCD 演算法第 3 點

  • If x and y are both even,
    gcd(x,y)=2×gcd(x2,y2)
    because
    2
    is a common divisor. Mulitplication with
    2
    can be done with betwise shift operator.

先取出uv 之間屬於

2n 的公因數,shift 即為最大的
n

while (!(u & 1))
    u /= 2;

對應至 GCD 演算法第4 點

  • If x is even and y is odd,
    gcd(x,y)=gcd(x2,y)
    .

u 為偶數時,可以除以

2

do {
    while (!(v & 1))
        v /= 2;
    if (u < v) {
        v -= u;
    } else {
        uint64_t t = u - v;
        u = v;
        v = t;
    }
} while (v);

其中 while(!(v &1)) v /= 2; 對應至 GCD 演算法第 5 點

  • On similar lines, if x is odd and y is even, then
    gcd(x,y)=gcd(x,y2)
    . It is because
    2
    is not a common divisor.

可以透過迴圈不變性 (loop invariant) 來幫助解讀程式

  • u 為被除數
  • v 為除數

當除數 v為 0 時結束迴圈,被除數 u 為進入迴圈前 uv 的最大公因數

事實上 u 在迴圈前不一定是被除數,因為先前透過 GCD 演算法第 4 點去除不必要的計算

return u << shift;

最後回傳最大公因數時,乘上原先取出屬於

2n 的公因數,可以透過左移達成

透過 __builtin_ctz 改寫程式

已知除法運算會耗費較多時間,我們可以利用 __builtin_ctz (編譯器會產生對應到現代微處理器的專門指令) 搭配上述針對二進位特性調整的演算法,減少除法的使用

將一百萬組由 rand 函式生成的亂數傳入 gcd64 函式執行,並藉由 Linux 核心提供的 perf 工具來分析:

$ gcc -g3 -O0 gcd.c -o gcd
$ perf record ./gcd
$ perf annotate


由上圖可以發現,花費 CPU 週期數最多的段落為迴圈當中的 v /= 2 運算,佔據約 28%

以下為改寫過後的程式

uint64_t gcd64_ctz(uint64_t u, uint64_t v)
{
    if (!u || !v) return u | v;
    int shift = __builtin_ctzll(u | v);
    u = u >> __builtin_ctzll(u);

    do {
        v = v >> __builtin_ctzll(v);
        if (u < v) {
            v -= u;
        } else {
            uint64_t t = u - v;
            u = v;
            v = t;
        }
    } while (v);
    return u << shift;
}

透過 perf 分析前後差異

$ gcc -g -O0 gcdcmp.c -o gcdcmp
$ perf record ./gcdcmp
$ perf report


將同樣一百萬筆由 rand 函式所產生的亂數傳入 gcd64gcd64_ctz 函式比較,發現改寫過後的版本花費時間幾乎是原來的一半。

透過 perf 分析改寫程式

$ gcc -g -O0 gcd_ctz.c -o gcd_ctz
$ perf record ./gcd_ctz
$ perf annotate


佔據花費時間最多的為分支指令 (如 jne),其次是迴圈內部的減法運算
