# BlackBox-Exporter 集成

> 以下部署配置基于 `KubeSphere` 的环境。

### 1. 部署

Kubesphere 默认没有集成`blackbox-exporter`，暂时需要手动部署，可以先直接 apply [manifests/blackbox-exporter](https://github.com/frezes/ks-prometheus/tree/feat/addBlackboxExporter/manifests/blackbox-exporter)目录下的文件，手动将`blackbox-exporter`组件加入到`prometheus`的监控目标中。

然后 apply 如下`resource`, 将探测目标加入 `blackbox-exporter` 的探测

apiVersion: monitoring.coreos.com/v1
kind: Probe
metadata:
  name: blackbox-http
  namespace: monitoring
spec:
  jobName: http-get
  interval: 60s
  module: http_2xx
  prober:
    url: blackbox-exporter.kubesphere-monitoring-system.svc:19115
    scheme: http
    path: /probe
  targets:
    staticConfig:
      static:
      - https://prometheus.io     #探测地址
      - http://prometheus.io
      - https://kubesphere.io
      - https://kubesphere.com.cn

部署完成后，`Prometheus` 将收集来自于`blackbox-exporter`对探测地址的监控指标。

### 2. 可视化

现阶段可以使用`grafana`提供的仪表盘，可以先看一下效果。

https://grafana.com/grafana/dashboards/?search=blackbox

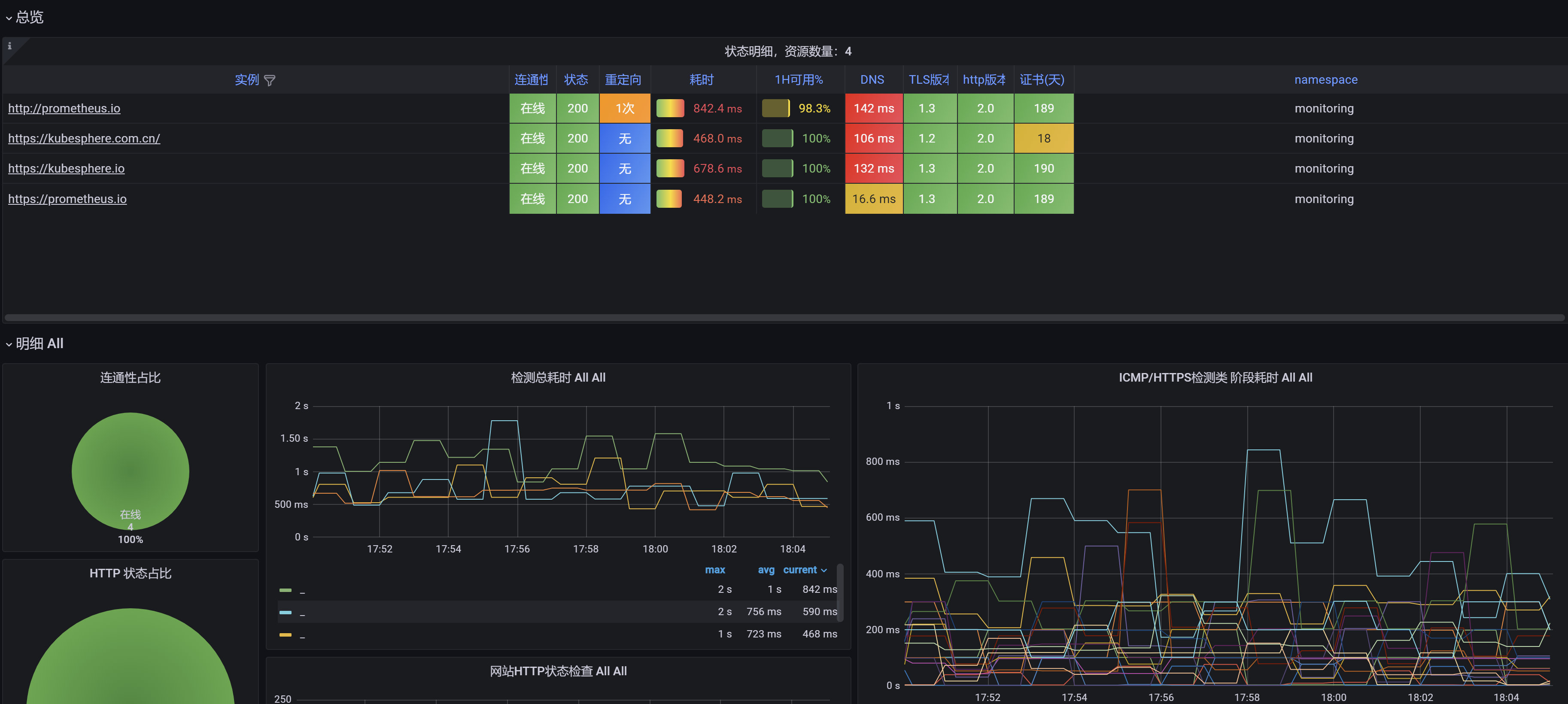

这里是模板ID为`9965` 的展示：

### 3. 配置

当前使用的配置为默认配置，比较简单通用，配置文件在`kubesphere-monitoring-system`空间的 `blackbox-exporter-configuration` 中。

而blackbox-exporter 支持更复杂的自定义配置，**它的配置灵活但需要根据场景进行自定义**。请参考 [example.yml](https://github.com/prometheus/blackbox_exporter/blob/master/example.yml):
> 如 L16-26 支持对response header与body进行正则匹配； L44-53 支持basic auth； L54-59 证书认证等。

modules:
  http_2xx_example:
    prober: http
    timeout: 5s
    http:
      valid_http_versions: ["HTTP/1.1", "HTTP/2.0"]
      valid_status_codes: []  # Defaults to 2xx
      method: GET
      headers:
        Host: vhost.example.com
        Accept-Language: en-US
        Origin: example.com
      no_follow_redirects: false
      fail_if_ssl: false
      fail_if_not_ssl: false
      fail_if_body_matches_regexp:
        - "Could not connect to database"
      fail_if_body_not_matches_regexp:
        - "Download the latest version here"
      fail_if_header_matches: # Verifies that no cookies are set
        - header: Set-Cookie
          allow_missing: true
          regexp: '.*'
      fail_if_header_not_matches:
        - header: Access-Control-Allow-Origin
          regexp: '(\*|example\.com)'
      tls_config:
        insecure_skip_verify: false
      preferred_ip_protocol: "ip4" # defaults to "ip6"
      ip_protocol_fallback: false  # no fallback to "ip6"
  http_with_proxy:
    prober: http
    http:
      proxy_url: "http://127.0.0.1:3128"
      skip_resolve_phase_with_proxy: true
  http_post_2xx:
    prober: http
    timeout: 5s
    http:
      method: POST
      headers:
        Content-Type: application/json
      body: '{}'
  http_basic_auth_example:
    prober: http
    timeout: 5s
    http:
      method: POST
      headers:
        Host: "login.example.com"
      basic_auth:
        username: "username"
        password: "mysecret"
  http_custom_ca_example:
    prober: http
    http:
      method: GET
      tls_config:
        ca_file: "/certs/my_cert.crt"
  http_gzip:
    prober: http
    http:
      method: GET
      compression: gzip
  http_gzip_with_accept_encoding:
    prober: http
    http:
      method: GET
      compression: gzip
      headers:
        Accept-Encoding: gzip
  tls_connect:
    prober: tcp
    timeout: 5s
    tcp:
      tls: true
  tcp_connect_example:
    prober: tcp
    timeout: 5s
  imap_starttls:
    prober: tcp
    timeout: 5s
    tcp:
      query_response:
        - expect: "OK.*STARTTLS"
        - send: ". STARTTLS"
        - expect: "OK"
        - starttls: true
        - send: ". capability"
        - expect: "CAPABILITY IMAP4rev1"
  smtp_starttls:
    prober: tcp
    timeout: 5s
    tcp:
      query_response:
        - expect: "^220 ([^ ]+) ESMTP (.+)$"
        - send: "EHLO prober\r"
        - expect: "^250-STARTTLS"
        - send: "STARTTLS\r"
        - expect: "^220"
        - starttls: true
        - send: "EHLO prober\r"
        - expect: "^250-AUTH"
        - send: "QUIT\r"
  irc_banner_example:
    prober: tcp
    timeout: 5s
    tcp:
      query_response:
        - send: "NICK prober"
        - send: "USER prober prober prober :prober"
        - expect: "PING :([^ ]+)"
          send: "PONG ${1}"
        - expect: "^:[^ ]+ 001"
  icmp_example:
    prober: icmp
    timeout: 5s
    icmp:
      preferred_ip_protocol: "ip4"
      source_ip_address: "127.0.0.1"
  dns_udp_example:
    prober: dns
    timeout: 5s
    dns:
      query_name: "www.prometheus.io"
      query_type: "A"
      valid_rcodes:
        - NOERROR
      validate_answer_rrs:
        fail_if_matches_regexp:
          - ".*127.0.0.1"
        fail_if_all_match_regexp:
          - ".*127.0.0.1"
        fail_if_not_matches_regexp:
          - "www.prometheus.io.\t300\tIN\tA\t127.0.0.1"
        fail_if_none_matches_regexp:
          - "127.0.0.1"
      validate_authority_rrs:
        fail_if_matches_regexp:
          - ".*127.0.0.1"
      validate_additional_rrs:
        fail_if_matches_regexp:
          - ".*127.0.0.1"
  dns_soa:
    prober: dns
    dns:
      query_name: "prometheus.io"
      query_type: "SOA"
  dns_tcp_example:
    prober: dns
    dns:
      transport_protocol: "tcp" # defaults to "udp"
      preferred_ip_protocol: "ip4" # defaults to "ip6"
      query_name: "www.prometheus.io"
