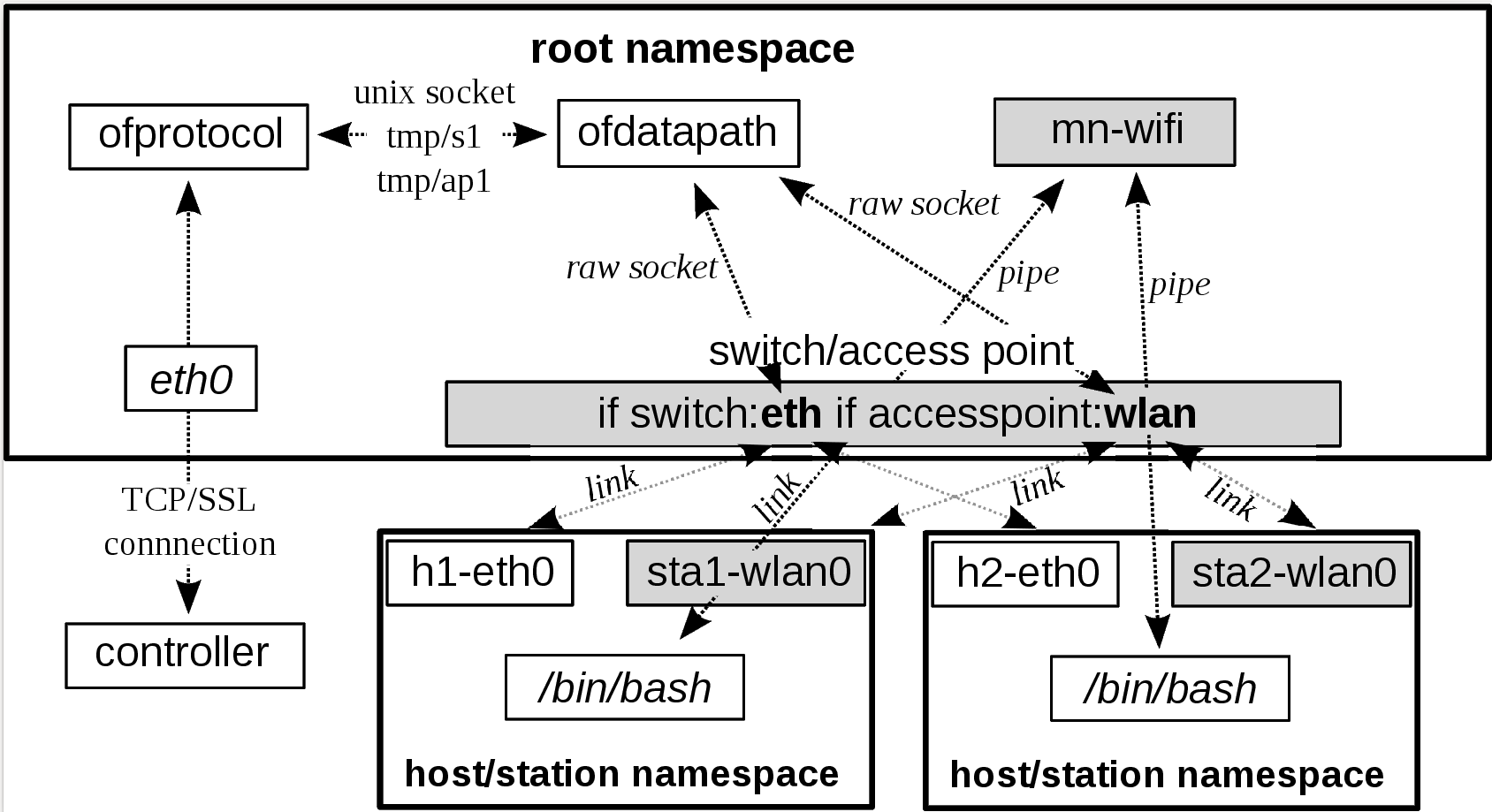

###### tags: `Simulation - WIFI` # Mininet-WIFI introduction # Resources ## Github https://github.com/intrig-unicamp/mininet-wifi ### Pre-configured Virtual Machine For your convenience, we provide pre-built VM images including Mininet-WiFi and other useful software. The VM images are in .ova format and should be usable with any modern x64 virtualization system. [[3.4GB Size\] - Lubuntu 20.04 x64](https://drive.google.com/file/d/1R8n4thPwV2krFa6WNP0Eh05ZHZEdhw4W/view?usp=sharing) - Mininet-WiFi (*password: wifi*) [[6.7GB Size\] - Lubuntu 20.04 x64](https://drive.google.com/file/d/1oozRqFO2KjjxW0Ob47d6Re4i6ay1wdwg/view?usp=sharing) - Mininet-WiFi with P4 (*password: wifi*) ### Note Mininet-WiFi should work fine in any Ubuntu distribution from 14.04, but in some cases (only if you have problems when start it) you have to stop *Network Manager* with either `sudo systemctl stop network-manager` or `sudo service network-manager stop`. ## Online Doc https://mininet-wifi.github.io/ ## Book https://github.com/ramonfontes/mn-wifi-ebook/ ## The User Manual https://usermanual.wiki/Pdf/mininetwifidraftmanual.297704656.pdf # Mininet Inro https://www.brianlinkletter.com/2013/11/mininet-test-drive/ To create a network topology with four virtual machines connected to a switch, enter the command: ``` $ sudo mn --topo=single,4 ``` ### Mininet commands - *help*: lists the mininet commands - *dump*: lists information about the nodes, switches, and controllers in the simulated network. - *nodes*: lists the names of the network elements in the simulated network - *net*: shows how network elements are connected to each other in the simulated network. ### Run commands on hosts "h1" is the host name. ``` mininet> h1 pwd /home/mininet ``` ``` mininet> h1 ls install-mininet-vm.sh mininet of-dissector oflops oftest openflow pox mininet> ``` ### Interacting with hosts ``` mininet> xterm h1 ``` ``` mininet> xterm h2 h3 h4 ``` ### h1 ping h2 on the Wireshark On the Wireshark, the packets are only in h1 and h2 interfaces. (Or use the interface: any.) On the Wireshark, don't monitor switches(s1 s2 s3 ...). It will crash. ### Simulating a large network ``` $ sudo mn --topo tree,depth=3,fanout=4 ``` ### Mininet and routing A good example of this functionality is provided by the [RouteFlow project](https://sites.google.com/site/routeflow/). ### Mininet tutorials The [Mininet web site](http://mininet.org/) offers some very good tutorials to help new users understand how to use Mininet. For more details about using Mininet and about OpenFlow controllers, please see the [Mininet walkthrough](http://mininet.org/walkthrough/) tutorial and the [Openflow tutorial](http://archive.openflow.org/wk/index.php/OpenFlow_Tutorial). ### Conclusion As a simulator for Software Defined Networking, Mininet seems to work well. However, Mininet — as it is provided by the Mininet project without modification — will not simulate a “traditional” IP network composed of hosts, switches, and routers. # Mininet-WIFI Intro https://www.brianlinkletter.com/2016/04/mininet-wifi-software-defined-network-emulator-supports-wifi-networks/ You will have to install additional tools and follow a complex procedure to [enable monitoring of WiFi traffic on the *ap1-wlan0* interface](https://wiki.wireshark.org/CaptureSetup/WLAN#Linux) An easier method is available: look for the *hwsim0* interface on an access point, enable it, and monitor traffic on it. The *hwsim0* interface replays communications Mininet-WiFi : has graph Mininet : has no graph ### STOP Tutorial Stop Mininet-Wifi and clean up the system with the following commands: ``` mininet-wifi> exit wifi:~$ sudo mn -c ``` ### Tutorial #1: 1 AP, 2 STAs To view wireless control traffic we must first start Wireshark: ``` wifi:~$ sudo wireshark & ``` Then, start Mininet-WiFi with the default network scenario using the command below: ``` wifi:~$ sudo mn --wifi ``` Next, enable the *hwsim0* interface. The *hwsim0* interface is the software interface created by Mininet-WiFi that copies all wireless traffic to all the virtual wireless interfaces in the network scenario. It is the easiest way to monitor the wireless packets in Mininet-WiFi. ``` mininet-wifi> sh ifconfig hwsim0 up ``` Now, in Wireshark, refresh the interfaces and then start capturing packets on the *hwsim0* interface. Next, tun a *ping* command: ``` mininet-wifi> sta1 ping sta2 ``` **Note: No packets on lo(loopback), in other words: no packets to OpenFlow-enabled switches** ### Tutorial #2: Multiple access points In this tutorial, we will create a linear topology with three access points, where one station is connected to each access point. ``` wifi:~$ sudo mn --wifi --topo linear,3 ``` For example, we can run the *net* command to see the connections between nodes: ``` mininet-wifi> net sta1 sta1-wlan0:None sta2 sta2-wlan0:None sta3 sta3-wlan0:None ap1 lo: ap1-eth1:ap2-eth1 ap2 lo: ap2-eth1:ap1-eth1 ap2-eth2:ap3-eth1 ap3 lo: ap3-eth1:ap2-eth2 c0 ``` To check which access points are “visible” to each station, use the *iw scan* command: ``` mininet-wifi> sta1 iw dev sta1-wlan0 scan | grep ssid SSID: ssid_ap1 SSID: ssid_ap2 SSID: ssid_ap3 ``` Verify the access point to which each station is currently connected ... ``` mininet-wifi> sta1 iw dev sta1-wlan0 link Connected to 02:00:00:00:03:00 (on sta1-wlan0) SSID: ssid_ap1 freq: 2412 RX: 1853238 bytes (33672 packets) TX: 7871 bytes (174 packets) signal: -30 dBm tx bitrate: 54.0 MBit/s bss flags: short-slot-time dtim period: 2 beacon int: 100 mininet-wifi> ``` ==A simple mobility scenario== Manually switch the *sta1* association from *ap1* to *ap2* ... ``` mininet-wifi> sta1 iw dev sta1-wlan0 disconnect mininet-wifi> sta1 iw dev sta1-wlan0 connect ssid_ap2 ``` We see that *sta1* is now associated with *ap2*. ``` mininet-wifi> sta1 iw dev sta1-wlan0 link Connected to 02:00:00:00:04:00 (on sta1-wlan0) SSID: ssid_ap2 freq: 2412 RX: 112 bytes (4 packets) TX: 103 bytes (2 packets) signal: -30 dBm tx bitrate: 1.0 MBit/s bss flags: short-slot-time dtim period: 2 beacon int: 100 mininet-wifi> ``` sta3 ping sta1 ``` > xterm sta3 > ping 10.0.0.1 ``` dump flow ``` mininet-wifi> dpctl dump-flows ``` sta1 connect to ap1 ``` mininet-wifi> sta1 iw dev sta1-wlan0 disconnect mininet-wifi> sta1 iw dev sta1-wlan0 connect ssid_ap1 ``` sta3 ping sta1 failed ``` ping is stopped. ``` delete flow ``` mininet-wifi> dpctl del-flows ``` ping is back!! We will need to us a more advanced remote controller, such as OpenDaylight, to enable station mobility ... ### Tutorial #3: Python API and scripts Mininet provides a Python API. Mininet-WiFi extends this API. ``` sta2 = net.addStation('sta2', mac='00:00:00:00:00:02', **sta2_args) ap1 = net.addAccessPoint('ap1', ssid='ssid-ap1', channel='1', position='15,30,0') ``` Add an access point and specify the wireless encryption method, SSID, wireless mode, channel, position, and radio range: ``` net.addAccessPoint( 'ap1', passwd='123456789a', encrypt='wpa2', ssid= 'ap1-ssid', mode= 'g', channel= '1', position='30,30,0', range=30 ) ``` Add a wireless association between a station and an access point and specifiy link properties of maximum bandwidth, error rate, and delay: ``` net.addLink( ap1, sta1, bw='11Mbps', loss='0.1%', delay='15ms' ) ``` For example, use the following method to use the *strongest signal first* when determining connections between station and access points: ``` net.associationControl( 'ssf' ) ``` #### Classic Mininet API The Mininet WiFi Python API still supports the standard Mininet node types — switches, hosts, and controllers. For example: Add a host. Note that the station discussed above is a type of host nodem with a wireless interface instead of an Ehternet interface. ``` net.addHost( 'h1' ) ``` Add a switch. Note that the access point discussed above is a type of switch that has one wireless interface (*wlan0*) and any number of Ethernet interfaces (up to the maximum supported by your installed version of Open vSwitch). ``` net.addSwitch( 's1' ) ``` Add an Ethernet link between two nodes. Note that if you use *addLink* to connect two access points together (and are using the default Infrastructure mode), Mininet-WiFi creates an Ethernet link between them. ``` net.addLink( s1, h1 ) ``` Add a controller: ``` net.addController( 'c0' ) ``` #### Working with Mininet-WiFi during runtime Mininet-WiFi python scripts may be run from the command line by running the script directly, or by calling it as part of a Python command. The only difference is how the path is stated. For example: ``` wifi:~/scripts $ sudo ./position-test.py ``` or, ``` wifi:~$ sudo python position-test.py ``` #### Mininet-WiFi CLI: Distance ``` mininet-wifi> distance ap1 sta2 The distance between ap1 and sta2 is 41.23 meters ``` #### Mininet-WiFi Python runtime interpreter ``` mininet-wifi> py ap1.range ``` #### Changing the network during runtime ![](https://raw.githubusercontent.com/mininet-wifi/mininet-wifi.github.io/master/assets/img/arch.png)
