# 底層機制遊記 x86 篇
[TOC]

## 前言
這篇是講 x86_64 架構，其他如 MIPS 或 ARM 我就不確定是不是這樣ㄌ

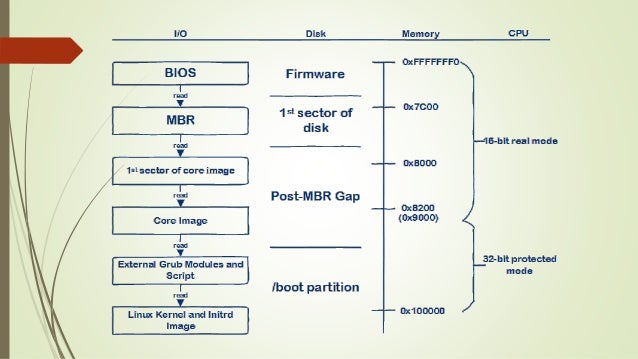

## Booting Process

1. BIOS 執行並讀取 MBR
- 0xFFFFFFF0 映射到 ROM
- MBR 會被讀取到 0000:7c00，此為 BIOS 固定行為
- 初始為 16-bit real mode
- Real mode 相對於 Protected mode
- Real mode 沒有任何限制
- Protected mode 不能使用 BIOS interrupt
2. MBR 執行並讀取 Loader
- MBR 後的世界都可以自己寫
3. Loader 執行並讀取 Kernel (OS)，**或是 Load 其他 Loader**
- 總之，Loader 也可以自己寫，可以自己寫的意思就是，Loader 的行為可以自己決定

### Boot Loader
從上面可以知道，從 BIOS 執行，到 OS 執行，中間的過程是先進 MBR
而因為進到 MBR 後，開始可以自己寫 code 操控電腦
所以說 MBR 也是 Loader，好像也沒錯

所以名詞部分，再說一次
BIOS 是 BIOS
MBR 跟 Loader 之後就都概括在 Boot Loader 這個名詞中

所以開機流程寫成這樣

BIOS -> Boot Loader -> Kernel (OS)

參考 [GRUB2 以及啟動過程詳解](https://wenku.baidu.com/view/77c60ac2d4bbfd0a79563c1ec5da50e2524dd153.html?re=view)
Boot Loader 現在有很多類型，大致如下
- Linux: GRUB2
- Windows: Bootmgr/BCD
- Apple: BootX

## MBR
參考 [X86 Assembly/Bootloaders](https://en.wikibooks.org/wiki/X86_Assembly/Bootloaders)
> The first 512 bytes of a disk are known as the bootsector or Master Boot Record. The boot sector is an area of the disk reserved for booting purposes. If the bootsector of a disk contains a valid boot sector (the last word of the sector must contain the signature 0xAA55), then the disk is treated by the BIOS as bootable.
>

- 1 Sector -> 512Bytes
- MBR (Master Boot Record) = 磁碟的第一個 sector (磁區)
- MBR 的最後 2 Bytes 必須為 0xAA55，才會被 BIOS 認為是 bootable device
- BIOS 執行的最後，JMP 到 0000:7c00，也就是 MBR 被讀取到 RAM 的位置，此時 DL 會放開機裝置號

參考 [主開機紀錄 Wiki](https://zh.wikipedia.org/wiki/%E4%B8%BB%E5%BC%95%E5%AF%BC%E8%AE%B0%E5%BD%95)
可參考裡頭的**標準MBR結構**

### My Ubuntu

lsb_release -a

No LSB modules are available.
Distributor ID:	Ubuntu
Description:	Ubuntu 18.04.2 LTS
Release:	18.04
Codename:	bionic

### What about my MBR ?

# 將 disk 第一個 sector 取出來，即 MBR
sudo dd if=/dev/sda of=sda.bin count=1 bs=512
# 逆向一下
objdump -D -M intel,i8086 -b binary -m i386 sda.bin | less

後來發現 `/boot/grub/i386-pc/boot.img` 行為就跟上面 dd 出來的 `sda.bin` 一樣

cd /boot/grub/i386-pc
objdump -D -M intel,i8086 -b binary -m i386 boot.img | less

簡單 hexdump 看一下

sudo hexdump -C /dev/sda -n 512


最後面的 word 的確是 0xAA55 (little-endian)

可以 file 一下

file /boot/grub/i386-pc/boot.img

/boot/grub/i386-pc/boot.img: DOS/MBR boot sector

好奇了一下到底憑什麼判斷是 boot sector
該不會是判斷 file size 512 Bytes、最後是 0xAA55 就說是 boot sector 吧
來做一個符合這兩個條件的假 boot sector

dd if=/dev/zero of=test.img bs=510 count=1
echo '\x55\xaa' >> test.img
# 因為 echo 有多 echo 1 Byte EOL 字元
# 可以 ls -al 看一下，size 為 513
# 萃取前 512 Bytes
dd if=test.img of=test2.img bs=512 count=1
file test2.img

test2.img: DOS/MBR boot sector

噢還真的
那再進一步驗證，是否 size 要剛好 512 Bytes?
延續上面的指令

dd if=/dev/urandom of=random bs=512 count=1
cat random >> test2.img
file test2.img

test2.img: DOS/MBR boot sector; partition 1 : ID=0xaa, active 0xe0, start-CHS (0x75,225,7), end-CHS (0x9a,41,60), startsector 1483234983, 135635970 sectors; partition 2 : ID=0x52, active 0xa9, start-CHS (0x51,123,1), end-CHS (0x1be,94,41), startsector 3502776151, 2374752414 sectors

看來只要 magic number 0xAA55 有就好了

### DPT
Disk Partition Table (DPT) 是 MBR 中其中一個欄位
我自己爆改過空 img，用 fdisk 看是有效果的

dd if=/dev/zero of=test.img bs=512 count=1
vi test.img
# 使用 %!xxd 換成 hex editing mode
# 改完後再用 %!xxd -r 反轉回來，並且 wq 儲存

改成以下:


觀看 DPT

fdisk -l test.img


對照一下

hexdump -C test.img -s 0x1be

000001be  00 00 00 00 83 00 00 00  00 08 00 00 00 10 00 00  |................|
000001ce  00 00 00 00 83 00 00 00  00 10 00 00 00 20 00 00  |............. ..|
000001de  00 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  |................|
*
000001fe  55 aa 41 41 41 41 0a                              |U.AAAA.|
00000205

每個 DPT 是 16 Bytes，MBR 中固定有 4 個 DPT 紀錄
像是此例中的第一個 DPT

000001be  00 00 00 00 83 00 00 00  00 08 00 00 00 10 00 00  |................|

- 0x83 表示 Type，為 Linux
- 8 ~ 11 Bytes 表示起始 sector，注意 little-endian
- 00 08 00 00 因為 little-endian 倒過來變成 00 00 08 00
- 0x00000800 = 2048
- 12 ~ 15 Bytes 表示結束 sector
- 00 10 00 00 倒過來變成 00 00 10 00
- 0x00001000 = 4096

DPT Format:
| Offset | 0x00 | 0x01 | 0x02 | 0x04 | 0x05 | 0x06 | 0x08 | 0x0c |
| -------- | -------- | -------- | - | - | - | - | - | - |
| Meaning | 表明是否為活動分區 | 起始磁頭 | 起始 sector: 6 bits; 起始 Cylinder: 10bits | 分區類別 | 結束磁頭 | 結束 sector: 6 bits; 結束 Cylinder: 10bits | 起始 sector | 結束 sector |

分區類別 (Partition Type Indicator) 太多了不附上了
But 有個特殊的
擴充分區的號碼為 0x85

## LBA
Logical Block Address (LBA)
TBD

## Practice
可以參考這個 repos
- [實作 Bootloader](https://github.com/andrewli315/ais3_rev_final_project)

## Manual
[這篇](https://hackmd.io/@LJP/rkQsP54S8)紀錄閱讀 `Intel 64 and IA-32 Architectures Software Developer's Manual Volume3 System Programming Guide` 的筆記

## Other Topics

### Bootable USB ?
參考 [What makes a USB flash drive bootable?](https://www.quora.com/What-makes-a-USB-flash-drive-bootable)
> You have to have a boot sector written to the USB medium that the system BIOS will recognize.
>
> For USB, there have been a lot of variations of boot sector models, including USB-ZIP, USB-FLOPPY and USB-HDD.
>
> USB drives may emulate one or more of these boot types. Over time, everything has converged to USB-HDD. Any modern USB stick emulates a USB hard drive (USB-HDD).
>
> At boot time, the BIOS can be configured to check the USB stick to see if it has been marked as bootable with a valid boot sector. If so, it will boot just as a hard drive with similar settings in the boot sector would.

統整上一篇文說的

- USB: Three type of boot sector
- USB-ZIP
- USB-FLOPPY
- USB-HDD

- 大部分都是 USB-HDD

補充知識: [boot sector](https://en.wikipedia.org/wiki/Boot_sector)

參考 [Writing a Tiny x86 Bootloader](http://joebergeron.io/posts/post_two.html)，實作看看 Bootable USB (TBD.)
