# SearchWing - Knowledge sharing

As we are a Open Source project sharing our knowledge is key for our project. We want bring the field of Open Source Search and Rescue drones forward by developing and using the technology and share it with everyone.

## Our drone

We build unmanned aerial vehicles specially adapted and equipped for search and rescue operations at sea.


The drone extends the search radius of a rescue vessel at the sea to cover an area up to 160 km² per mission, instead of less than 5 km² when only relying on binoculars to search the sea.
Features

# Bill of Materials

All the parts needed to build the drone and groundstation are open source and can be found in this file:
[BOM](https://gitlab.com/searchwing/development/drones/talon-template/-/raw/main/bom.ods)

# Features

## Performance

| Range | Flight Time | Area Covered |
|-----------|------------|---------------|
| 80-120 km | 60-90 min | 160-240 km² |

| Wing Span | Max Speed | Ground Resolution |
|-----------|----------|--------------------|
| 1300 mm | 100 km/h | ~20 cm/pixel (at 550m altitude) |

## Advantages

### Long Range
- Flies over **1 hour** and **100 km** on one battery charge.
- Battery can be changed within minutes.

### Easy to Use
- After a few hours of training, **anyone** can plan missions, start the plane, and return it safely.

### Built for the Sea
- **Waterproof (IP67)**, tested at high wind speeds.

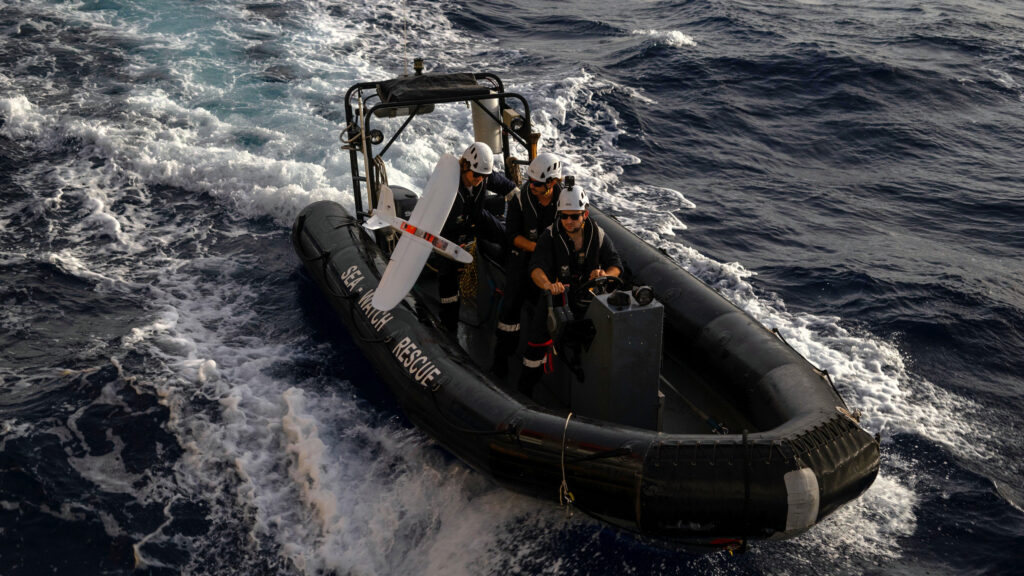

- Can land on water and is easy to recover.

## Long Range
Flies over 1h and 100 km on one battery charge. Battery can be changed within minutes.

## Easy to use
After a few hours of training, everybody can plan missions, start the plane, and return it safely.

## Built for the sea
Waterproof (IP67), tested at high wind speeds, landing on the water, and easy to recover.


## Camera / Image Recognition

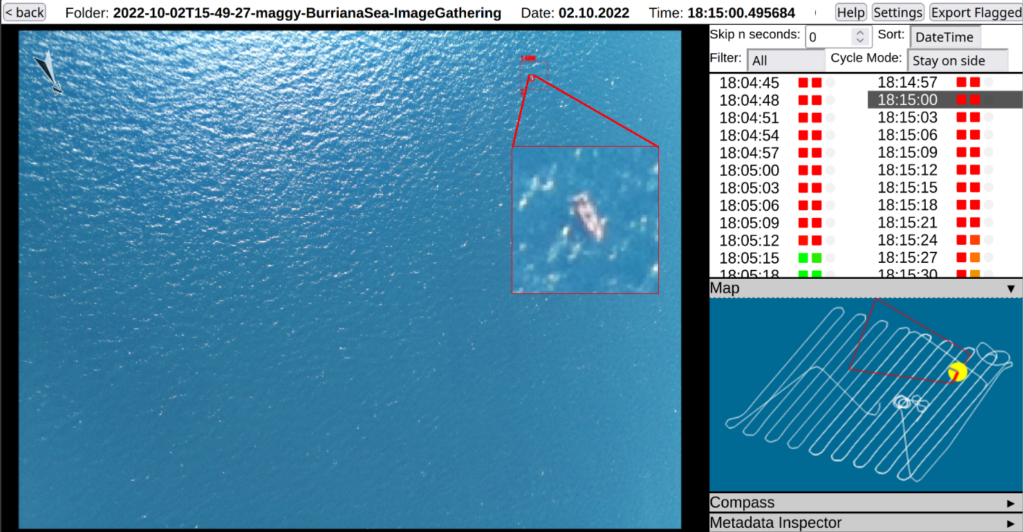

Two 8 megapixel cameras provide sharp pictures of the sea surface and people in distress from 550m above the sea. The pictures can be analysed both manually and automatically using our image recognition algorithm.


## Wiki
Visit our [wiki](https://wiki.searchwing.org/) for more details and more shared knowledge.
