# Data Structures and Algorithms (DSA)

[TOC]

<br>

補充文章：
- [用JAVA學資料結構與演算法](https://hackmd.io/@Aquamay/H1nxBOLcO/https%3A%2F%2Fhackmd.io%2F%40Aquamay%2Frk1C8ni5d)
- [演算法＆資料結構學習筆記](https://medium.com/@amber.fragments/演算法-學習筆記-0-前言-8be08a00600)

---

## Part 1. Algorithm

### 1.1 Good Pseudo Code should be ...
- **modularize**
- depends on **speaker/listener**
- usually **no formal definition**

Here is an example :
```c++=
// SELECTION-SORT(A)
for i=1 to A.length
    m = GET-MIN-INDEX(A, i, A.length)
    SWAP(A[i], A[m])
return A    // which has been sorted in place

// GET-MIN-INDEX(A,i,r)
m = i    // store current min.index
for i=i+1 to r
    // update if i-th element smaller
    if A[m] > A[i]
        m = i
return m
```

在以上的例子中，就不需要將 SWAP 的細節一一寫出來。

---

### 1.2 Criteria of Algorithm
- **input**
- **definiteness**
    clear instructions (人要能看懂)
- **effectiveness**
    feasible instructions (電腦要能做到)
- **finiteness**
    completable instructions (跑得完)
- **output**

output (**correctness**) : needs proving with respect to requirements

---

### 1.3 如何寫證明 ?

- #### Claim
    - **Correctness of GET-MIN-INDEX**

        Upon exiting GET-MIN-INDEX(A),

        &nbsp;&nbsp;&nbsp;&nbsp; $A[m] = \underset{1 \leq j \leq n}{\min} A[j]$&nbsp;&nbsp;&nbsp;&nbsp;  with n = A.length

- #### Proof of Loop Invariant => correctness claim of algorithm
    - **invariant within GET-MIN-INDEX**

        Upon finishing the loop with i = k,
        donate m by $m_k$

        &nbsp;&nbsp;&nbsp;&nbsp; $A[m_k] \le A[j] \quad for \quad j =  1,2,...,k$

        (loop) invariant: property that algorithm maintains

    - **Mathematical Induction**
        - Base
            when i = 2, invariant true because...
        - Assume
            assume invariant true for i = t-1;
            when i = t, ...
        - Proof

---
## Part 2. Data Structure
Good Algorithm Needs Proper Data Structure

### 2.1 Data Structure Needs Accessing Algorithms
好的 Data Structure 需要拿出來與放進去的方法
- #### GET
    - GET-BY-INDEX : for arrays
    - GET-NEXT : for sequential access
    - GET(key) : for search
    generally assume to **read without deleting**
- #### INSERT
    - INSERT-BY-INDEX : for arrays
    - INSERT-AFTER : for sequential access
    - INSERT(key, data)
    generally assume to **add without overriding**

rule of thumb : often-<span style="color:red">GET</span> $\iff$ <span style="color:blue">place</span> "nearby" (常用到的東西會放的近一點)

---
### 2.2 Data Structure Needs Maintenance Algorithms

- #### CONSTRUCT
    - usually possible with multiple <span style="color:red">INSERT</span>
    - sometimes possible to be <span style="color:green">faster</span> than so
- #### REMOVE
    - often viewed as deleting <span style="color:blue">after GET</span>
    - $\sim$ <span style="color:blueviolet">UN</span><span style="color:red">INSERT</span> : often harder than <span style="color:red">INSERT</span>
- #### UPDATE
    - usually possible with <span style="color:blueviolet">REMOVE</span> + <span style="color:red">INSERT</span>
    - can be viewed as <span style="color:red">INSERT</span> <span style="color:orange">with overriding</span>

hidden cost of data structure : maintenance effort (esp. <span style="color:blueviolet">REMOVE</span> & <span style="color:orange">UPDATE</span>)

---
### 2.3 INSERT of Ordered Array

#### SWAP Version
```c++=
// INSERT(A, data)
n = A.length
A[n+1] = data // put in the back
for i=n downto 1
    if A[i+1] < A[i]
        SWAP(A[i], A[i+1])    // cut in consecutive
    else
        return
```

#### Direct Cut-in Version
```c++=
// INSERT(A, data)
key = data
i = A.length
while i > 0 and A[i] > key
    A[i+1] = A[i]
    i = i - 1
A[i+1] = key
return
```

INSERT : <span style="color:red">cut in</span> from <span style="color:blue">back</span>

---
### 2.4 CONSTRUCT of Ordered Array

#### SELECTION-SORT
```c++=
// SELECTION-SORT(A)
for i=1 to A.length
        GET-MIN-INDEX(A,i,A.length)
    SWAP(A[i],A[m])
return A

// GET-MIN-INDEX(A,l,r)
m = l    // store current min.index
for i=l+1 to r
    // update if i-th element smaller
    if A[m] > A[i]
        m = i
return m
```

#### INSERTION-SORT
```c++=
// INSERTION-SORT(A)
for i=1 to A.length
    INSERT(A,i)
return A

// INSERT(A,m)
key = A[m]
i = m-1
while i > 0 and A[i] > key
    A[i+1] = A[i]
    i = i - 1
A[i+1] = key
```

INSERTION-SORT : CONSTRUCT with multiple <span style="color:red">INSERT</span>

---
### 2.5 REMOVE and UPDATE of Ordered Array

#### REMOVE
```c++=
// REMOVE(A,m)
i = m + 1
while i < A.length
    A[i-1] = A[i]    // fill in
    i = i + 1
A.length = A.length - 1
```

#### UPDATE
```c++=
// UPDATE(A,m,data)
key = data
i = m
if A[i] > key    // insert to front
    i = i - 1
    while i > 0 and A[i] > key
        A[i+1] = A[i]
        i = i - 1
    A[i+1] = key
else    // insert to back
    i = i + 1
    while i < A.length and A[i] < key
        A[i-1] = A[i]
        i = i + 1
    A[i+1] = key
```

ordered array : more <span style="color:blueviolet">maintenance efforts</span> $\implies$ faster GET?

---
### 2.6 Sequential Search Algorithm for Any Array

<span style="color:blue">SEQ-SEARCH</span> : structurally similar to <span style="color:red">GET-MIN-INDEX</span>

Review of GET-MIN-INDEX :
```c++=
// GET-MIN-INDEX(A,i,r)
m = l    // store current min.index
for i=l+1 to r
    // update if i-th element smaller
    if A[m] > A[i]
        m = i
return m
```

```c++=
// SEQ-SEARCH(A,key,l,r)
for i = l to r
    // return when found
    if A[i] equals key
        return i
return NIL
```

---
### 2.7 Ordered Array : Sequential Search with Shortcut
ordered : possibly <span style="color:blueviolet">easier</span> to declare <span style="color:orange">NIL</span>
```c++=
// SEQ-SEARCH-SHORTCUT(A,key,l,r)
for i = l to r
    // return when found
    if A[i] equals key
        return i
    else if A[i] > key
        return NIL
return NIL
```

---
### 2.8 Ordered Array : Binary Search Algorithm
```c++=
// BIN-SEARCH(A,key,l,r)
while l <= r
    m = floor((l+r)/2)
    if A[m] equals key
        return m
    else if A[m] > key
        r = m - 1    // cut out end
    else if A[m] < key
        l = m + 1    // cut out begin
return NIL
```

<span style="color:red">BIN-SEARCH</span> : multiple shortcuts by <span style="color:red">quickly checking the middle</span>

#### Binary Search in Open Source
Using java.util.Arrays,
```c++=
private static int binarySearch(int[] a, int key)
    int low = 0;
    int high = a.length - 1;

    while (low <= high) {
        int mid = (low + high) >>> 1;
        int midVal = a[mid];

        if (midVal < key)
            low = mid + 1;
        else if (midVal > key)
            high = mid - 1;
        else
            return mid;    // key found
    }
    return -(low + 1)    // key not found
```

---
### 2.9 Why Data Structures and Algorithms?
good <span style="color:blueviolet">program</span> : proper use of <span style="color:blueviolet">resources</span>

- #### Space Resources
    - momory
    - disk(s)
    - transmission bandwidth
    usually cared by <span style="color:red">data structure</span>

- #### Computation Resources
    - CPU(s)
    - GPU(s)
    - computation power
    usually cared by <span style="color:blue">algorithm</span>

- Other Resources
    - manpower
    - budget
    usually cared by <span style="color:green">management</span>


<span style="color:red">data structures</span> and <span style="color:blue">algorithms</span> : for writing good <span style="color:blueviolet">program</span>

---
### 2.10 Proper Use : Trade-off Different Factors
- faster GET $\iff$ slower INSERT and/or maintenance
- more space $\iff$ faster computation
- harder to implement/debug $\iff$ faster computation
<span style="color:blueviolet">good program</span> needs understanding trade-off

---
### 2.11 Summary of Data Structure
- definition of data structure
    organize data with <span style="color:orange">access/maintenance</span> algorithms
- ordered array as data structure
    <span style="color:orange">insert by cut-in, remove by fill-in</span>
- GET (search) in ordered array
    <span style="color:orange">binary search</span> using <span style="color:orange">order</span> for shortcuts
- why data structures and algorithms
    study <span style="color:orange">trade-off</span> to move from coding to programming

---
### 2.12 Appendix
:question: 生成測試資料的技巧
1. 思考什麼情形最容易出錯，例如最極端情形/邊緣情形 (boundary case)，需思考到全面狀況
2. 如何生成大規模測試資料
<br>

---

## Part 3. Linked List

### 3.1 Issue of Order Array for Polynomial Computation
Esssentially <span style="color:blue">INSERT</span> in ordered array cause many <span style="color:blueviolet">content moving</span> when cutting in. (ordered array : less flexible for <span style="color:blue">insertion & removal</span>)
Use Linked List for flexible insertion, no <span style="color:blueviolet">content moving</span>, just <span style="color:orange">changing pointers</span>

<span style="color:red">overhead of next</span> $\implies$ flexible <span style="color:blue">INSERT-AFTER</span>

---
### 3.2 Algorithms (Operations) for Linked List
- GET-DATA(clue) $\implies$ GET-DATA(node)
    return data[clue] &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; return node.data
- GET-NEXT(clue) $\implies$ GET-NEXT(node)
    return <span style="color:red">next[clue]</span> &nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; return <span style="color:red">node.next</span>

```c++=
// INSERT-AFTER(node, data)
newNode = NODE(data, node.next)
node.next = newNode

// REMOVE-AFTER(node)
oldNode = node.next
node.next = oldNode.next
return oldNode
```
<span style="color:red">linked</span> list : flexibility to allocate NODE <span style="color:red">anywhere</span>

---
### 3.3 Linked List : Ordered v.s. Unordered

#### Ordered Linked List
- output polynomial <span style="color:red">orderly</span>
- INSERT : (sequential) <span style="color:red">search</span> before insertion
- UPDATE : <span style="color:red">remove then insert</span>

#### Unordered Linked List
- <span style="color:blue">general purposes</span>
- INSERT : usually just <span style="color:blue">head insertion</span>
- UPDATE : <span style="color:blue">simply change</span> the node

<span style="color:red">ordered</span> v.s. <span style="color:blue">unordered</span> : trade-off between <span style="color:red">(orderly) output</span> & <span style="color:blue">maintenance</span> time

---
### 3.4 REMOVE-HERE for Linked List
For example: node@4.next = node@2.next.
But here is the problem, do not know where node@4 is, unless sequential search

Result : <span style="color:blueviolet">REMOVE-HERE</span> is hard for <span style="color:orange">singly</span> linked list
<br>

Then there is the solution for REMOVE-HERE :
### 3.5 Doubly Linked List : More Flexible REMOVE-HERE
```c++=
// REMOVE-HERE(node)
node.prev.next = node.next
node.next.prev = node.prev
return node
```

<span style="color:blue">overhead of prev</span> in doubly linked list $\implies$ flexible REMOVE-HERE

---
### 3.6 INSERT for Doubly Linked List
```c++=
// INSERT-AFTER(node, data)
newNode = NODE(data, node.next, node)
node.next = newNode
newNode.next.prev = newNode

// INSERT-BEFORE(node, data)
newNode = NODE(data, node, node.prev)
node.prev = newNode
newNode.prev.next = newNode
```

not just space overhead, but also <span style="color:blue">time overhead</span> for <span style="color:blue">doubly linked list</span>

---
### 3.7 Sparse Vector : Dense Array versus Linked List
$[1,0,0,0,0,3,0,4] \in \mathbb{R}^8$

- #### Dense Array Representation
    | index | 1   | 2   | 3   | 4   | 5   | 6   | 7   | 8   |
    | ----- | --- | --- | --- | --- | --- | --- | --- | --- |
    | value | 1   | 0   | 0   | 0   | 0   | 3   | 0   | 4   |

- #### Linked List Representation
    store **non-zero** values with ordered linked list of (index, value)
    $(1,1) \to (6,3) \to (8,4)$

storing only non-zeros : time/space efficient if many zeros

---
### 3.8 Merging Sparse Vectors
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;$[1,0,0,0,0,3,0,4] + [0,0,0,0,0,6,9,0]$
$(1,1) \to (6,3) \to (8,4) + (6,6) \to (7,9)$

```c++=
// SUM(A,B)

L = empty list, ca = A.head, cb=B.head
while ca != NIL and cb != NIL
    if ca.index equals cb.index
        if (ca.value+cb.value) != 0
            L.INSERT-TAIL(NODE(ca.value+cb.value,NIL))
        ca = ca.next, cb = cb.next
    else if ca.index > cb.index
        L.INSERT-TAIL(NODE(cb.value,NIL))
        cb = cb.next
    else
        L.INSERT-TAIL(NODE(ca.value,NIL))
        ca = ca.next
[L.INSERT-TAIL on the non-NIL cursor]
return L
```

#### Real-World Use of Sparse Vector : LIBSVM
```c++=
// svm.cpp

double Kernel::dot(const svm_node *px, const svm_node *py) {
    double sum = 0;
    while (px->index != -1 && py->index != -1) {
        if (px->index == py->index) {
            sum += px->value * py->value;
            ++px;
            ++py;
        }
        else {
            if (px->index > py->index)
                ++py;
            else
                ++px;
        }
    }
    return sum;
}
```

---
### 3.9 Summmary of Linked List
- motivation of linked list
    overhead of <span style="color:orange">next</span> for flexibility
- doubly linked list
    overhead of <span style="color:orange">prev</span> for more flexibility
- linked list for sparse vector
    storing non-zeros for time/space efficiency
- linked list in job interviews
    often used to test basic computational thinking
<br>

---

## Part 4. Analysis Tools

### 4.1 Properties of Good Programs

#### Good Program
- meet requirements, correctness: basic
- clear usage document (external), readability (internal), etc.

#### Proper Resource Usage
- efficient use of computation resources (CPU,GPU,etc.) $\to$ <span style="color:blue">time complexity</span>
- efficient use of storage resources (memory,disk,etc.) $\to$ <span style="color:blue">space complexity</span>

---
### 4.2 Space Complexity of GET-MIN-INDEX
```c++=
// GET-MIN-INDEX(A,i,r)
m = i    // store current min.index
for i=i+1 to r
    // update if i-th element smaller
    if A[m] > A[i]
        m = i
return m
```
- array A : pointer size <span style="color:blue">$d_1$</span> (not counting the actual input elements)
- integer m : size <span style="color:blue">$d_2$</span>
- integer i : size <span style="color:blue">$d_2$</span>

total space  <span style="color:blue">$d_1 + 2d_2 (constant)$</span>
within algorithm execution : **not dependent to n = A.length**

---
### 4.3 Space Complexity of GET-MIN-INDEX-WASTE
```c++=
// GET-MIN-INDEX-WASTE(A)
B = COPY(A,1,A.length)
INSERTION-SORT(B)
return B[1]    // 傳回最小值
```
- array A : pointer size <span style="color:blue">$d_1$</span> (not counting the actual input elements)
- array B : pointer size <span style="color:blue">$d_1$</span> and n = A.length intergers <span style="color:blue">$n \cdot d_2$</span> (跟著資料量成長最多)

total space <span style="color:blue">$2d_1 + d_2n$ (linear) : dependent to n</span>

---
### 4.4 Time Complexity of Insertion Sort

```c++=
// INSERTION-SORT(A)
for m = 2 to A.length
    key = A[m]
    // Insert A[m] into the sorted sequence A[1...m-1]
    i = m - 1
    while i > 0 and A[i] > key
        A[i+1] = A[i]
        i = i - 1
    A[i+1] = key
```


total time $T(n)$ = $\color{blue}{d_1}n + \color{blue}{d_2}(n - 1) + \color{blue}{d_4}(n - 1) + \color{blue}{d_5}\sum_\limits{m=2}^{n}\color{red}{t_m} +  \color{blue}{d_6}\sum_\limits{m=2}^{n}(\color{red}{t_m} - 1) +  \color{blue}{d_7}\sum_\limits{m=2}^{n}(\color{red}{t_m} - 1) + \color{blue}{d_8}(n - 1)$

cost <span style="color:blue">$d_x$ depends on machine type</span> : total $T(n)$ depends on $n$ and <span style="color:red">$t_m$ number of **while** checks</span>

---
### 4.5 Time Complexity Analysis in Reality
- #### Common Focus
    worst-case time complexity
    - meaningful in practice (waiting time)
    - similar to average-case when near-worst-case often enough
- #### Common Language
    'rough' time needed w.r.t. n (input size)
    - care about larger n
    - leading (bigger) term more important
    - insensitive to constants
---

### 4.6 'Rough' Notation
- care about larger $n$
- leading term more important
- insensitive to constants

In following case :

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; $\underbrace{cn^2 + bn + a}_\text{f(n)} = \underbrace{\Theta(n^2)}_\text{g(n)}$

for <span style="color:red">positive</span> $f(n)$ and $g(n)$ [when n $\ge$ 1]
<br>

#### Representing 'Rough' by Asymptotic Behavior

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; $\underbrace{cn^2 + bn + a}_\text{f(n)} = \underbrace{\Theta(n^2)}_\text{g(n)}$

- growth of $bn + a$ slower than $g(n) = n^2$ : removed by dividing $g(n)$ for large $n$
- asymptotically, two functions only differ by $c > 0$

&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; $\lim\limits_{n\to\infty}\frac{f(n)}{g(n)} = c$
<br>

In conclusion, for <span style="color:red">positive</span> $f(n)$ and $g(n)$,
&nbsp; $f(n) = \Theta{g(n)}\  \text{ if } \ \lim_{n\to\infty}\frac{f(n)}{g(n)} = c > 0$
<br>


**big-$\Theta$ : roughly the same**
- Back to the before, definition meets criteria :
    - care about larger $n$ : yes $n \to \infty$
    - leading term more important : yes, $n + \sqrt{n} + log{n} = \Theta(n)$
    - insensitive to constants: yes, for example : $1126n = \Theta(n)$

- meaning : $f(n)$ grows roughly the same as $g(n)$

- "$=\Theta(\cdot)$" actually "$\in$"
<br>
    |              | $\sqrt{n}$ | $0.1126n$ | $n$ | $112.6n$ | $n^{1.1}$ | $e^n$ | $n+\sqrt{n}$ |
    | ------------ | ---------- | --------- | --- | -------- | --------- | ----- | ----------- |
    | $\Theta(n)?$ | N          | Y         | Y   | Y        | N         | N     | Y           |

Asymptotic notation is the most used 'language' for time/space complexity

---
### 4.7 Big-O Notation
Use binary search as example, which best case $O(1)$ and worst case $\Theta(log n)$ for 'any' binary search task, needed time roughly no more than $log(n)$ $\to$ but usually we don't need ~~best case~~
<br>

<img src='https://cstaleem.com/wp-content/uploads/2023/03/Theta-Notation-%CE%98-notation.png'><br><br>

**Big-O Notation**

$f(n)$ grows slower than or similar to $g(n)$ : ("$\le$")

One side of $\Theta(\cdot)$ definition :
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; $f(n) = O(g(n))$ iff exist positive($c_2$,$n_0$) such that $f(n) \le c_2 \cdot g(n)$ for all $n \ge n_0$

Order (由小到大) :
&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; $log_2n < n < nlog_2n < n^2 < n^3 < 2^n < n!$

---
### 4.8 Three Big Asymptotic Notation
- $f(n)$ grows slower than or similar to $g(n)$ : ("$\le$")
    $f(n) = O(g(n))$ iff exist $c$,$n_0$ such that $f(n) \le c \cdot g(n)$ for all $n \ge n_0$

- $f(n)$ grows faster than or similar to $g(n)$ : ("$\ge$")
    $f(n) = \Omega(g(n))$ iff exist $c$,$n_0$ such that $f(n) \ge c \cdot g(n)$ for all $n \ge n_0$

- $f(n)$ grows similar to $g(n)$ : ("$\approx$")
    $f(n) = \Theta(g(n))$ iff $f(n) = O(g(n))$ and $f(n) = \Omega(g(n))$

usually only need Big-O

---

### 4.9 Transitivity of Big-O
#### Theorem
if $f(n) = O(g(n))$ $[f \le g]$, &nbsp; $g(n) = O(h(n))$ then $f(n) = O(h(n))$ $[g \le h]$

#### Proof
- When $n \ge n_1$,&nbsp; $f(n) \le c_1g(n)$
- When $n \ge n_2$,&nbsp; $g(n) \le c_2h(n)$
- So, when $n \ge max(n_1, n_2)$,&nbsp; $f(n) \le c_1c_2h(n)$

Similar for $\Omega$ and $\Theta$

---

### 4.10 Closure of Big-O
#### Theorem
if $f(n) = O(h(n))$, &nbsp; $g(n) = O(h(n))$ then $f(n) + g(n) = O(h(n))$

#### Proof
- When $n \ge n_1$, &nbsp; $f(n) \le c_1h(n)$
- When $n \ge n_2$, &nbsp; $g(n) \le c_2h(n)$
- So, when $n \ge max(n_1, n_2)$, &nbsp; $f(n) + g(n) \le (c_1 + c_2)h(n)$

Similar for $\Omega$ and $\Theta$

---

### 4.11 Summary of Analysis Tools
- motivation
    quantity <span style="color:orange">time/space complexity</span> to measure efficiency
- cases of complexity analysis
    often focus on <span style="color:orange">worst-case</span> with 'rough' notations
- asymptotic notation
    <span style="color:orange">rough comparison of function for large n</span>
- usage of asymptotic notation
    describe $f(n)$ (time, space) by simpler $g(n)$
- operations on asymptotic complexity
    analyze pseudo code by pieces
- practical complexity
    how much more resource needed?
<br>

---

## Part 5. Stack

#### Last-In-First-Out (LIFO)
Stack is a restricted data stucture, but important for computer science.
All insertions and deletions of entries are made at one end, which called the **top** of the stack.

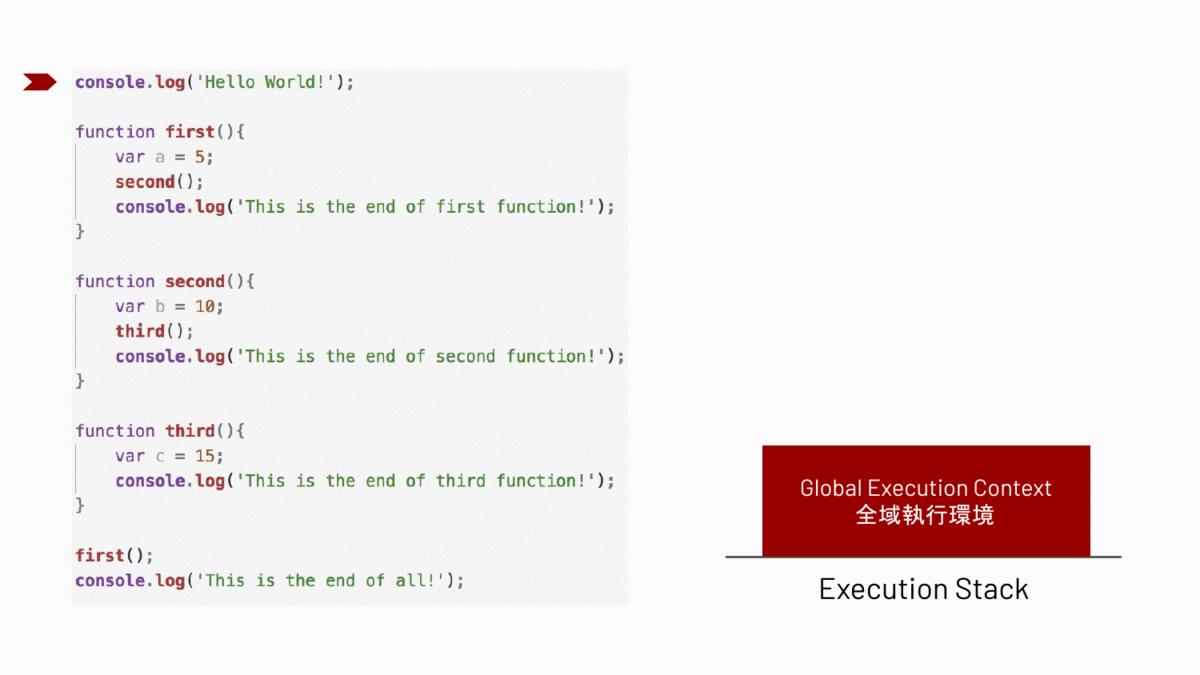

### 5.1 使用堆疊呼叫函式
- 呼叫函式時
    <img src='https://miro.medium.com/v2/resize:fit:1100/1*nMAYYF1N04SjoRfdRmp4NA.gif'>

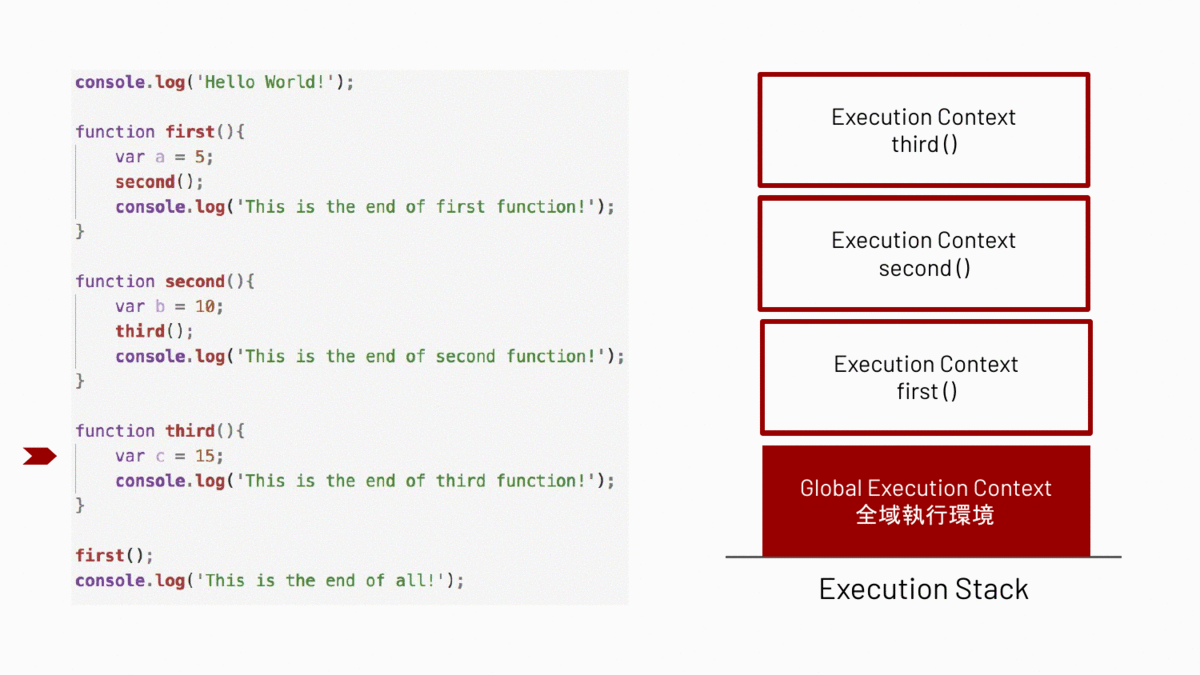

- 執行函式時
    <img src='https://miro.medium.com/v2/resize:fit:1100/1*Kk8KFEJ_mJmrv-hQN21gGg.gif'>

---

### 5.2 The Three Stack Operations

#### PUSH
```c++=
PUSH(S, data)
    // INSERT usually named PUSH
    // put data onto top of S
```

#### PEEP
```c++=
PEEP(S)
    // GET usually named PEEP
    // return top element of S
```

#### POP
```c++=
POP(S)
    // REMOVE usually named POP
    // remove and return top element of S
```

Sometimes other utility functions like SIZE() or ISEMPTY()

---

### 5.3 Stacks Implemented on Array

#### PUSH
```c++=
// PUSH(S, data)
S.top = S.top + 1
S.arr[S.top] = data
```

#### POP
```c++=
// POP(S)
S.top = S.top - 1
return S.arr[S.top + 1]
```

Usually consecutive array with S.top at 'tail' of array for O(1) operations.

---
### 5.4 Stack Solution to Parentheses Balancing
#### Condition
Any ')' should match last unmatched '(' (LIFO)

#### Method
'(' : PUSH,&nbsp; ')' : POP

#### Parentheses Balancing Algorithm
```c++=
S = empty stack
for each c in input
    if c is '('
        PUSH(S, c)
    else    // c is ')'
        if not ISEMPTY(S)
            POP(S)
        else
            return FALSE
return ISEMPTY(S)
```
---
### 5.5 Stack Solution to Infix-Postfix Translation

由於電腦看不懂先乘除後加減，所以需用這個方式表達。
補充文章 : [Link](https://www.geeksforgeeks.org/convert-infix-expression-to-postfix-expression/?ref=lbp)

#### Postfix
postfix evaluation with operand stack S
```c++=
S = empty stack
for each token in input
    if token is a number
        PUSH(S, token)
    else if token is an operator
        // 注意 a,b 先後，會影響關係
        b = POP(S)
        a = POP(S)
        PUSH(S, token(a, b))
return POP(S)
```

#### Infix to Postfix
Infix to Postfix with operator stack S2
```c++=
S2 = empty stack
for each token in input
    if token is a number
        output token
    else if token is a operator
        while not ISEMPTY(S2) and PEEP(S2) is higher/same precedence
            output POP(S2)
        PUSH(S2, token)
```

Mixing the two Algorithms(or stacks S1, S2) will be a simple calculator

---

### 5.6 Summary of Stack
- motivation
    temporary storage with <span style='color:orange'>LIFO</span>
- implementation
    <span style="color:orange">$O(1)$ push/pop from tail of array</span>
- application: postfix evaluation
    stack as temporary storage of partial results
- application: expression parsing
    stack as temporary storage of waiting operands
<br>

---
## Part 6. Queue
#### First-In-First-Out (FIFO)
Queue is a restricted data stucture, but important for computer science.

### 6.1 Packet Queue in Networking

<br>
<img src='https://i.stack.imgur.com/LUpE6.gif'><br><br>

Multiple queues with different priority for weighted fair queuing.
In real world use, from simple/single queue to complicated/multiple queues.

---

### 6.2 Queue Implemented on Circular Array

<br>
<img src='https://marxtudor.com/wp-content/uploads/2015/04/circular-queue-explained-1.jpg'>
<br><br>

#### ENQUEUE
```c++=
// ENQUEUE(Q, data)
Q.arr[Q.tail] = data
if Q.tail == Q.length
    Q.tail = 1
```

#### DEQUEUE
```c++=
// DEQUEUE(Q)
x = Q.arr[Q.head]
if Q.head == Q.length
    Q.head = 1
else
    Q.head = Q.head + 1
return x
```

---

### 6.3 General Maze Algorithm
#### Condition
- <span style='color:blue'>start from some location</span>
- <span style='color:red'>storage of future candidate</span>
- <span style='color:blueviolet'>record of visited</span>

#### Code
```c++=
// MAZE-OUT(M)
Candidate = {}
all Visited[i,j] = false
Candidate.INSERT(M.begin_i, M.begin_j)

// get out of M starting from (M.begin_i, M.begin_j)

while Candidate not empty
    (i, j) = Candidate.REMOVE()
    if Visited[i,j] is false
        Visited[i,j] = true
        for each non-Visited(k,l) neighbor of (i,j)
            if (k,l) is exit
                return SUCCEED
            else
                Candidate.INSERT(k,l)
return NO-WAY-OUT
```

Walk to <span style='color:limegreen'>exit</span> by <span style='color:limegreen'>random</span> remove from <span style='color:red'>Candidate</span>.

---

### 6.4 Maze Algorithm by Stack
```c++=
// MAZE-OUT-STACK(M)
Candidate = {}
all Visited[i,j] = false
Candidate.PUSH(M.begin_i, M.begin_j)

// get out of M starting from (M.begin_i, M.begin_j)

while Candidate not empty
    (i,j) = Candidate.POP()
    if Visited[i,j] is false
        Visited[i,j] = true
        for each non-Visited(k,l) neighbor of (i,j)
            if (k,l) is exit
                return SUCCEED
            else
                Candidate.PUSH(k,l)
return NO-WAY-OUT
```

LIFO of <span style='color:limegreen'>Stack</span> $\implies$ <span style='color:limegreen'>later neighbor</span> first $\implies$ <span style='color:limegreen'>last path</span> out
<span style='color:limegreen'>Stack</span> : last path out by **D**epth-**F**irst **S**earch

---

### 6.5 Maze Algorithm by Queue
```c++=
// MAZE-OUT-QUEUE(M)
Candidate = {}
all Visited[i,j] = false
Candidate.ENQUEUE(M.begin_i, M.begin_j)

// get out of M starting from (M.begin_i, M.begin_j)

while Candidate not empty
    (i,j) = Candidate.DEQUEUE()
    if Visited[i,j] is false
        Visited[i,j] = true
        for each non-Visited(k,l) neighbor of (i,j)
            if (k,l) is exit
                return SUCCEED
            else
                Candidate.ENQUEUE(k,l)
return NO-WAY-OUT
```

FIFO of <span style='color:limegreen'>Queue</span> $\implies$ <span style='color:limegreen'>nearby neighbors</span> first $\implies$ <span style='color:limegreen'>shortest unit-step path</span> out
<span style='color:limegreen'>Queue</span> : shortest unit-step path out by **B**readth-**F**irst **S**earch

---

### 6.6 Deques (雙頭佇列)

**Deque = Stack + Queue + push_front**

- action :
    [constant-time] push_back (like push and enqueue), pop_back (like pop), pop_front (like dequeue), push_front
- application : job scheduling

Can be implemented by circular array or doubly-linked list.

---

### 6.7 Summary of Queue
- application : maze solving
    different data structure causes different algorithm behaviour
- <span style="color:orange">stack + queue = deque</span>
    union of both

<br>

---

## Part 7. Tree

### 7.1 Nature of Data Structures

| data structure    | nature                       |
| ----------------- | ---------------------------- |
| array             | indexed access               |
| linked list       | dequential access            |
| stack/queue/deque | restricted (boundary) access |
| tree              | hierarchical access          |

---

### 7.2 Formal Definition of (Rooted) Tree

$T = (\color{blue}{root};$ &nbsp; $\color{red}{T_1, T_2, \dots, T_n})$
- recursive definition
- <span style='color:blue'>T.root for starting tree access</span> (like L.head)
- <span style='color:red'>disjoint sub-trees $(T_1, \dots, T_n)$</span>
- recursion termination : <span style='color:limegreen'>$T_{LEAF}$ with no sub-trees</span>

<br>

- #### Height of Tree

    height = node max depth + 1

    usually want <span style='color:limegreen'>small height</span> to access efficiently from <span style='color:blue'>root</span>
    <br>
    <img src='https://media.geeksforgeeks.org/wp-content/uploads/20221107231243/heightexample2-660x399.JPG' style='width:400px'><br>

- #### Node of Tree

    node degree = # sub-trees
    - internal nodes : degrees > 0
    - external nodes : degrees = 0, <span style='color:limegreen'>leaves</span>

    <span style='color:limegreen'>leaves</span> some times called <span style='color:limegreen'>breadth</span> of tree
    <br><img src='https://media.geeksforgeeks.org/wp-content/uploads/20221107231626/depthexample1-660x468.JPG' style='width:400px'><br>

- #### Family Relatives of Tree
    <br><img src='https://hyosup0513.github.io/public/images/tree5.PNG' style="width:400px"><br>

---

### 7.3 Basic Algorithms (Operations) for Tree

$T = (\color{blue}{root};$ &nbsp; $\color{red}{T_1, T_2, \dots, T_n})$

- #### GET-DATA
    - linked list
        ```c++=
        // GET-DATA(L.node)
        return L.node.data
        ```
    - tree
        ```c++=
        // GET-DATA(T.node)
        return T.node.data
        ```

- #### GET-NEXT
    - linked list
      ```c++=
      // GET-NEXT(L.node)
      return L.node.next
      ```
    - tree
      ```c++=
      // GET-SUBTREE(T.node, index)
      return T.node.subtree.GET(index)
      ```

- #### <span style="color:red">INSERT-AFTER / INSERT-CHILD</span>
    - linked list
      ```c++=
      // INSERT-AFTER(L.node, data)
      newNode = NODE(data, L.node.next)
      L.node.next = newNode
      ```
    - tree
      ```c++=
      newNode = NODE(data,[])    // no child
      T.node.subtree.INSERT(newNode)
      ```

In General, tree is extension of linked list.

---

### 7.4 Representing Trees with Arrays and Linked List

#### Representing Trees with Arrays
<br><img src='https://i.stack.imgur.com/7MkVp.png'><br>
Can also have parent link (like doubly linked list)
<br>

#### Representing Trees with Linked List
Called <span style="color:red">left-child</span> <span style="color:limegreen">right-sibling</span> (LCRS)
<br><img src='https://examradar.com/wp-content/uploads/2016/10/Figure-5.2.7.-Linked-representation-for-the-binary-tree.png?x59255'><br><br>
<img src='https://opendsa-server.cs.vt.edu/ODSA/Books/Everything/html/_images/ChildLst.png'><br><br>
<img src='https://opendsa-server.cs.vt.edu/ODSA/Books/Everything/html/_images/GenLkFx.png'><br>

<hr>

### 7.5 C&RT for Algorithm for Decision Tree

```
function DecisionTree(data) {
    if cannot branch anymore
        return best color

    else
        1. learn branching criteria to cut the plane
        2. split data to 2 parts
        3. build sub-tree from each part
        4. return (branching criteria; sub-trees)
}
```

<span style="color:orange">C&RT : 'divide-and-conquer'</span> (based on <span style="color:blueviolet">selected components</span> of $CART^{TM}$ of California Statistical Software)

---

### 7.6 Summary of Tree
- intuition
<span style="color:orange">hierarchical(階層式) accessform root of tree</span>
- terminologies
family relatives useful for describing node relations
- implementations
<span style="color:orange">more complicated links than array/linked list</span>
- application : decision tree
<span style="color:orange">divide-and-conquer model in machine learning</span>
<br>

---

## Part 8. Binary Tree
- binary tree : rooted tree with node degree $\le$ 2 & <span style="color:green">left</span>/<span style="color:red">right</span> difference
    <br><img src='https://media.geeksforgeeks.org/wp-content/uploads/20200219144238/General-Tree-vs-Binary-Tree.png'><br>

- <span style="color:red">extended</span> binary tree : added <span style="color:red">empty external nodes</span> so all <span style="color:blueviolet">degree = 2</span> & all original nodes <span style="color:blue">blue</span>
    <br><img src='https://easytechnotes.com/wp-content/uploads/2023/06/30_20231.png'><br>
    補充連結 : [Link](https://hackmd.io/@vRN1CwEsTLyHOsG4mC0d4Q/SJJ6ofDn4)

---

### 8.1 Outputting Infix Expression from Expression Tree
Expression tree : (binary) expression represented by a (binary) tree. (將運算語意用tree表達)

#### want : 3 * 4 - ( 5 + 6 ) * 7 + 8 * 9
```c++=
// OUTPUT-INFIX(T)
if IS-LEAF(T)
    print T.data
else
    if (T.data higher precedence than T.left.data)
        print '('
    OUTPUT-INFEX(T.left)
    if (T.data higher precedence than T.left.data)
        print')'
    print data
    if (T.data higher precedence than T.right.data)
        print')'
    OUTPUT-INFEX(T.right)
    if (T.data higher precedence thatn T.right.data)
        print ')'
```

OUTPUT-INFIX is variant of INORDER-TRAVERSAL

<hr>

### 8.2 From OUTPUT-INFIX to INORDER-TRAVERSAL

左邊先做，再做中間，再做右邊。

#### OUTPUT-INFIX(T)
```c++=
if IS-LEAF(T)
    print T.data
else
    if ...
    OUTPUT-INFIX(T.left)
    if ...
    print T.data
    if ...
    OUTPUT-INFIX(T.right)
    if...
```

#### INORDER-TRAVERSAL(T)
```c++=
if T is NIL

else

    INORDER-TRAVERSAL(T.left)

    action with T.data

    INORDER-TRAVERSAL(T.right)

```

<hr>

### 8.3 POSTORDER-TRAVERSAL & PREORDER-TRAVERSAL

<img src='https://leetcode.com/articles/Figures/145_transverse.png'><br>

#### POSTORDER-TRAVERSAL(T)
```c++=
if T is not NIL
    POSTORDER-TRAVERSAL(T.left)
    POSTORDER-TRAVERSAL(T.right)
    action with T.data
```

#### PREORDER-TRAVERSAL(T)
```c++=
if T.is not NIL
    action with T.data
    PREORDER-TRAVERSAL(T.left)
    PREORDER-TRAVERSAL(T.right)
```

#### INORDER-TRAVERSAL(T)
```c+==
if T is not NIL
    INORDER-TRAVERSAL(T.left)
    action with T.data
    INORDER-TRAVERSAL(T.right)
```

#### Sorting
<img src='https://d18l82el6cdm1i.cloudfront.net/uploads/jxTW76g4MR-traversal.gif'>


<hr>

### 8.4 Full Tree and Complete Tree

#### Node 與 Height 的關係 :
&nbsp; &nbsp; $h \le n \le 2^h - 1 \iff lg(n+1) \le h \le n$ &nbsp; (備註: h is height, n is nodes)

<span style="color:red">**Note : 樹的演算法的複雜度，經常與高度有關**</span>

#### Tree 種類圖 :
[Full Tree v.s. Complete Tree 對比解說](http://alrightchiu.github.io/SecondRound/binary-tree-introjian-jie.html)<br>
<img src='https://i.stack.imgur.com/n2CFS.png'><br>

<hr>

### 8.5 Summary of Binary Tree
- terminologies
    <span style="color:orange">binary tree = tree with left/right sub-trees</span>
- bianry tree traversals
    templates for (recursive) tree algorithm design
- full and complete binary trees
    can be implemented in array <span style="color:orange">without wasting space</span>
<br>

<hr>

## Part 9. Priority Queue

Priority Queue : 'extension' of queue for more realistic use, Max-Priority-Out.

### 9.1 Priority Queue with Binary Tree

- #### previously
    |      | data  |
    | ---- | ----- |
    | <span style="color:green">left</span> | <span style="color:red">right</span> |
- #### next
    | key | data |
    | --- | ---- |
    | <span style="color:green">left</span>    |<span style="color:red">right</span>      |
<br>

key : priority (the <span style="color:blueviolet">larger</span> the better)

data : item in todo list
(will show key only for simplicity)

Goal : get the node with <span style="color:blueviolet">largest</span> key fast (& remove it)

<hr>

### 9.2 Max Tree

faster access to <span style="color:blueviolet">lartest key</span> if put at T.root
max-root (binary) tree : <span style="color:blueviolet">largest key @ root</span>

以上的問題是 hard to <span style="color:blueviolet">remove largest</span> fast if cannot easily locate <span style="color:red">second largest</span>

解決方法 : 保持第二、三優先度(維持最大的)在頂端，若是root消失，下一層對比找大的補上來。

max (binary) tree : <span style="color:blueviolet">largest key @ root</span> <span style="color:red">for every subtree</span>

<hr>

### 9.3 Simple Removal for Max Tree
```c++=
// REMOVEL-LARGEST(max tree T)
result = T.data
cursor = T.root    // 要缺位的
while (cursor not NIL)
    larger = COMPARE(cursor.left, cursor.right)
    if (larger not NIL)
        cursor.key = larger.key
        cursor.data = larger.data
    cursor = larger
return result
```

REMOVE-LARGEST for height-h max-tree takes O(h) time.

<hr>

### 9.4 Max Heap : "Shortest" Max Tree
### 9.5 REMOVE-LARGEST for Max Heap
**max heap = max tree + complete binary tree**

由於先維持 Max Tree 再維持 Complete Tree 不容易，所以先維持 Complete Tree。

```c++=
// REMOVE-LARGEST(max heap T)
result = T.data
remove T.tail & copy it to T.root    // tail 是尾巴(編號最大)的那個
cursor = T.root

while (cursor != NIL)
    largest = LARGEST(cursor, cursor.left, cursor.right)
    if (largest == cursor)
        break
    else
        SWAP(cursor, largest)
        cursor = largest
return result
```
大約 $O(logn)$

<hr>

### 9.6 INSERT for Max Heap
```c++=
// INSERT(max heap T, key, data)
insert(key, data) to T.tail
cursor = T.tail
while (cursor!= NIL)
    larger = LARGER(cursor, cursor.parent)
    if (larger == cursor)
        break
    else
        SWAP(cursor, larger)
        cursor = larger
```
<br>
<hr>

## Part 10. Heap

#### Heap $\iff$ Partially Ordered Array
unordered array $\to$ heap
selection sort $\to$ heap sort

### 10.1 Selection Sort v.s. Heap Sort

#### Selection Sort
```c++=
// SELECTION-SORT(A)
for i=1 to A.length
    m = GET-MIN-INDEX(A, i, A.length)
    SWAP(A[i], A[m])
return A    // which has been sorted in place

// GET-MIN-INDEX(A,i,r)
m = i    // store current min.index
for i=i+1 to r
    // update if i-th element smaller
    if A[m] > A[i]
        m = i
return m
```

time : $O(n) \cdot O(n) = O(n^2)$
<span style="color:orange">without any preprocessing</span>

#### Heap Sort
1. Complete Tree : 所有節點靠左
2. Maximum Heap : 上層堆滿後才可以堆下一層 (heap)，且父節點的 key 比子節點的 key 大

```c++=
// HEAP-SORT(A)
for i = A.length downto 1
    (key, data) = REMOVE-LARGEST(A, 1, A.length)
    copy (key, data) to A[i] // original A[i] is already in A[1]
return A    // which has been sorted in place
```

time : $O(n) \cdot O(log n) = O(nlogn)$
<span style="color:orange">after building heap</span>

Heap Sort : faster selection sort algorithm with help of heap data structure，可應用於 Priority Queue，只能用 Contiguous 實作。

<hr>

### 10.2 Huffman Tree

<img src='https://www.researchgate.net/publication/323883375/figure/fig3/AS:606308860444673@1521566705849/Huffman-coding-the-final-tree-of-the-code.png'><br>

#### Rule
- each <span style="color:red">leaf node</span> stores a symbol (i.e. 'B', 'R')
- <span style="color:blue">path</span> to <span style="color:red">leaf node</span> $\equiv$ <span style="color:blue">code</span> of symbol
- <span style="color:blue">compress</span> symbol string under some assumptions

**Important behind lossless compression (zip, inside jpeg)**

<hr>

### 10.3 Huffman Tree Construction

- **compute frequency of each symbol**
    紀錄每個字元出現的頻率(個數)
- **remove two smallest-frequency nodes; build sub-tree & insert**
- **repeat the step (tile done)**<br>
    <img src='https://www.researchgate.net/publication/3337841/figure/fig3/AS:394708393185337@1471117222874/Example-of-the-Huffman-tree-and-its-three-possible-encodings-a-Illustration-example.png'><br>

<hr>

### 10.4 DSA Takeaway
- binary tree is useful $\to$ huffman tree
- heap is useful $\to$ 'remove two smallest-freq' when constructing huffman tree

<hr>

### 10.5 Summary of Heap
- motivation
    <span style="color:orange">possibly efficient priority queue by max tree</span>
- max heap
    <span style="color:orange">max + complete binary tree for $O(log n)$ removal / insertion</span>
- heap sort
    <span style="color:orange">max heap ini array to speed up selection sort</span>
- application : huffman tree building
    <span style="color:orange">priority queue to build huffman tree for compression</span>

<br><hr>

## Part 11. Binary Search Tree

tree 在 memory 上比較 flexible (相較於array)，比較  binary search tree 以及 binary search。

#### Design wishes
- More flexible insertion than array : (binary) tree
- Similar algorithmic structure to BIN-SEARCH

#### Key idea
root $\sim$ middle
- Ordered array : [ left, middle ) < middle < (middle, right]
- <span style="color:orange">Binary search tree</span> : left sub-tree < root < right sub-tree <span style="color:orange">for every tree, sub-tree, sub-sub-tree, $\dots$</span> (只要看左邊或右邊就好)
- 在插入的順序中，小'於 parent 的節點往左邊放，大於 parent 的節點往右邊放 $\implies$ 所以從整棵樹來看，不是根據 root 大小來判斷節點在樹的左右邊

#### Requirements (of Binary Tree)
- The list must be <span style="color:orange">ordered</span>
- Rapid random access is required, so <span style="color:orange">cannot</span> use linked list

<span style="color:orange">binary search tree</span> : binary search with <span style="color:orange">tree</span> rather than ordered array

### 11.1 Binary Search Tree

將 binary search 的 middle 替換成 T.root (假的中點)

####  Binary Search
```c++=
// BIN-SEARCH(A,key)
left = 1, right = A.length
while left <= right
    mid = floor((left+right)/2)
    if A[mid] = key
        return mid
    else if A[mid] > key
        right = mid - 1    // cut out end
    else if A[mid] < key
        left = mid + 1    // cut out begin
return FAIL
```

complexity : $O(log n)$

#### Binary Search Tree
```c++=
// BST-SEARCH(T, key)
while T != NIL
    mid = T    // root
    if mid.key = key
        return mid
    else if mid.key < key
        T = T.right
    else if mid.key > key
        T = T.left
return FAIL
```

complexity : $O(h)$

<hr>

### 11.2 In-Order Traversal on BST
```c++=
// INORDER-TRAVERSAL(T)
if T is NIL
    return
else
    INORDER-TRAVERSAL(T.left)

    action with T.data

    INORDER-TRAVERSAL(T.right)
```

<hr>

### 11.3 Linked List v.s. Contiguous Array implementation

#### 用 Linked List 實作
- 容易增刪
- 容易 Merge Sort
- 做二元搜尋 (例如 Binary Search) 時效率差

#### 用 Contiguous Array 實作
- 不容易增刪
- 容易二元搜尋 (例如 Quick Sort、Heap Sort)

<hr>

### 11.4 Summary of Binary Search Tree
- 容易增刪資料
    <span style="color:orange">增加樹節點</span>
- 容易排序
    <span style="color:orange">中序尋訪</span>
- 容易搜尋
    <span style="color:orange">直接在樹狀結構上搜尋，複雜度 $O(logn)$</span>

<br><hr>

## Part 12. Sort

### 12.1 Selection Sort : Review and Refinements

#### Idea
Linearly select the minimum one from "unsorted" part; put the minimum one to the end of the "sorted" part

#### Implementations
- common implementation : swap minimum with a[i] for putting in i-th iteration
- rotate implementation : rotate minimum down to a[i] in i-th iteration
- linked-list implementation : insert minimum to the i-the element

#### About
- space $O(1)$ <span style="color:red">in-place</span>
- time $O(n^2)$ and <span style="color:red">$\Theta(n^2)$</span>
- rotate/linked-list : <span style="color:red">stable</span> by selecting minimum with smallest index (stable means same-valued elements keep their index orders)
- common implementation : unstable

<hr>

### 12.2 Heap Sort : Review and Refinements

#### Idea
Selection sort with a max-heap in original array rather than unordered pile

#### About
- space $O(1)$ <span style="color:red">in-place</span>
- time $O(n log n)$
    - 三搶一 : $2$ 個比較
    - 樹的深度 : $log_2n$
    - 執行 $n$ 次
    - 複雜度 = $2 * log_2n * n \approx 2nlog_2n$
- <span style="color:red">not stable</span>
- usually preferred over selection (faster)
- 效能的變異較小

#### Sorting
<img src='https://d18l82el6cdm1i.cloudfront.net/uploads/uv9rgMfetq-heapsort-example.gif'>

<hr>

### 12.3 Bubble Sort : Review and Refinements

#### Idea
Swap disordered neighbors repeatedly

#### About
- space $O(1)$ <span style="color:red">in-place</span>
- time $O(n^2)$
    - 每個做 $(n-1)$ 次比較
    - 最少 1 個 cycle (in-place); 最多 n 個 cycle $\implies$ 平均值 = $(n+1)/2$
    - 複雜度 : $(n-1) * (n+1)/2 \approx O(n^2)$
- stable
- <span style="color:red">adaptive</span> : can early stop
- a deprecated choice except in vary specific applications with a few disordered neighbors or if swapping neighbors is cheap (old tape days)

<hr>

### 12.4 Insertion Sort : Review and Refinements
#### Idea
Insert a card from the unsorted pile to its place in the sorted pile

#### Implementations
- naive implementation : sequential search sorted pile from the front <span style="color:red">$O(n)$ time per search, $O(n)$ per insert</span>
- backwise implementation : sequential search sorted pile from the back <span style="color:red">$O(n)$ time per search, $O(n)$ per insert</span>
- binary-search implementation : binary search the sorted pile <span style="color:red">$O(log n)$ time per search, $O(n)$ per insert</span>
- linked-list implemenation : same as naive but on linked lists <span style="color:red">$O(n)$ time per sesarch, $O(1)$ per insert</span>

#### About
- space $O(1)$
- time $O(n^2)$
- stable
- backwise implementation <span style="color:red">adaptive</span> (adaptive means 不管有無排好，所需花費的力氣都是一樣的)
- usually preferred over selection (adaptive)

<hr>

### 12.5 Tree Sort : Review and Refinements
#### Idea
Replace heap with a BST; an in-order traveral outputs the sorted result

#### About
- space $O(1)$
- time $O(n \cdot h)$, with worst $O(n^2)$ (unbalanced tree), average $O(nlogn)$, careful BST $O(nlogn)$
- unstable
- suitable for stream data and incremental sorting

<hr>

### 12.6 Quick Sort : Introduction
#### Idea
1. 從序列中找一個樞紐元素 (pivot)
2. 將 pivot 與 序列排頭 置換 (swap)
3. 根據 pivot 將其餘元素分成 「小於樞紐值」 以及 「大於等於樞紐值」
4. 將 pivot 移回 「小於」段落的排尾
5. 對此兩段落遞迴呼叫，重複執行 1~4 步驟，直至排序完成


- #### Tree Sort Revisited
    ```c++=
    // make a[0] the root of a BTS
    for i = 1, ..., n-1 do
        if a[i] < a[0]
            insert a[i] to the left-subtree of BST
        else    // a[i] > a[0]
            insert a[i] to the right-subtree of BST
        end if
    end for

    // in-order traversal of left-subtree, then root, then right-subtree
    ```

- #### Quick Sort
    ```c++=
    // name a[0] the pivot(基準點)
    for i = 1, ..., n-1 do
        if a[i] < a[0]
            put a[i] to the left pile of the pivot
        else    // a[i] > a[0]
            put a[i] to the right pile of the pivot
        end if
    end for

    // output quick-sorted left; output a[0]; output quick-sorted right
    ```

#### Implementations
- naive implementation : pick first element in the pile as pivot
- random implementation : pick a random element in the pile as pivot
- median-of-3 implementation : pick median(front, middle, back) as pivot

Contiguous 或是 Linked List 均可實作 Quick Sort。
<br>

<img src='https://wat-images.s3.ap-south-1.amazonaws.com/images/course/ci6ldqnqthum/Quick_Sort_0.png'><br>

---

### 12.7 Quick Sort : Review and Refinement
#### Idea
Simulate tree sort without building the tree

#### About
- space : worst $O(n)$, average $O(log n)$ <span style="color:red">on stack calls</span>
- time : worst $O(n^2)$, average $O(n log n)$
- not stable (效能變異比 Merge Sort 大)
- usually best choice for large data (if not requiring stability), can be mixed with other sorts for small data

<hr>

### 12.8 Merge Sort : Introduction
#### Idea
1. 將序列分割成兩個子序列 (等長或長度差一)
2. 對兩個子序列分別排序 (遞迴呼叫)
3. 將兩個排序完成的子序列合併

#### Implementations
- Bottom-up implementation:
    | data |     |     |     |     |     |     |     | sorted          |
    | ---- | --- | --- | --- | --- | --- | --- | --- | --------------- |
    | 6    | 5   | 4   | 7   | 8   | 3   | 1   | 2   | (size-1 sorted) |
    | 5    | 6   | 4   | 7   | 3   | 8   | 1   | 2   | (size-2 sorted) |
    | 4    | 5   | 6   | 7   | 3   | 8   | 1   | 2   | (size-4 sorted) |
    | 1    | 2   | 3   | 4   | 5   | 6   | 7   | 8   | (size-8 sorted) |
    - $O(log n)$ loops, the i-th loop combines size-$2^i$ arrays $O(\frac{n}{2^i})$ times
    - Combine size-$l$ array can take $O(l)$ time but need <span style="color:red">$O(l) space!$</span>
    - Thus, bottom-up Merge Sort takes <span style="color:red">$O(n log n)$</span> time

- Top-down implementation:
    MergeSort(arr, left, right) = combine(MergeSort(arr, left, mid), MergeSort(arr, mid+1, right));
    - divide and conquer, $O(log n)$ level recursive calls

- Analysis Diagram
    <img src='https://www.andrew.cmu.edu/course/15-121/lectures/Sorting%20Algorithms/pix/mergesort_complexity.bmp'><br>

<hr>

### 12.9 Merge Sort : Review and Refinements
#### Idea
Combine sorted parts repeatedly to get everything sorted

#### About
- time $O(n log n)$ in both implementations
- usually stable (if carefully implemented), parallellize well (很好平行化，可以小堆小堆進行)
- popular in <span style="color:red">external sort</span>
- 需要額外的空間儲存較小序列

---

### 12.10 Time Complexity and Space Complexity of Each Sort

<img src='https://edurev.gumlet.io/ApplicationImages/Temp/a5d8f710-434d-4b40-8833-75a5b661f2eb_lg.jpeg?w=576&dpr=1.0'>
