# 【資料結構與演算法】 02 Analysis Tools

[TOC]

<br>

---

## Part 1. Properties of Good Programs

#### Good Program
- Meet requirements and Correctness are basic
- External for clear usage document
- Internal for readability

#### Proper Resource Usage
- Efficient use of computation resources (CPU,GPU,etc.) $\to$ <span style="color:blue">time complexity</span>
- Efficient use of storage resources (memory,disk,etc.) $\to$ <span style="color:blue">space complexity</span>

通常會先專注在**速度 (time complexity)**，然後再來探討**記憶體 (space complexity)**。

<br>

---

## Part 2. Operation Code (電腦運算碼)

首先了解電腦需要處理的運算符號，然後是運算碼數量。而運算碼的大小 (常數)，其實對電腦不太重要。

- 所有操作都花費**一樣**的時間 $\to$ <span style="color:blue">運算符號</span>
- 把所有操作需要的「**次數**」都計算出來 $\to$ <span style="color:blue">運算碼數量</span>
- 根據**複雜度**，並且評估執行時間

<br>

### 2.1 運算符號

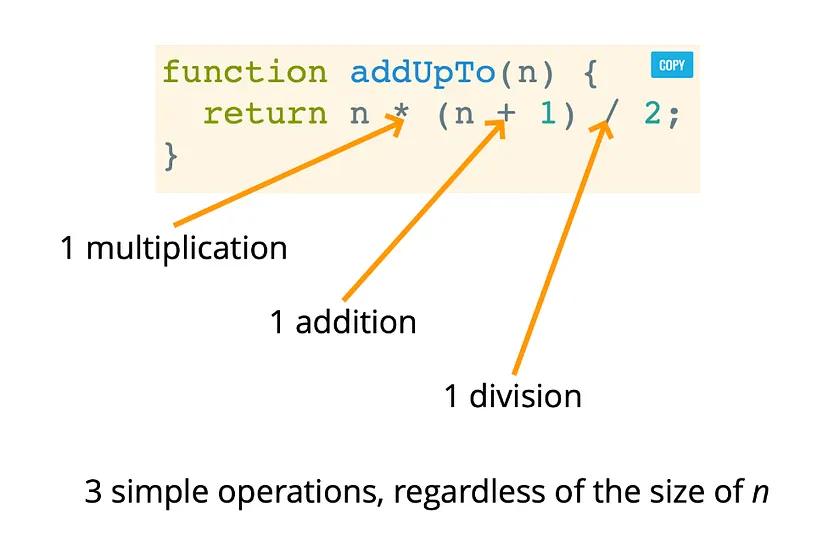

在下圖中，無論 $n$ 是多大，電腦所需處理的都是 $3$ 個運算符號。
<img src='https://miro.medium.com/v2/resize:fit:828/format:webp/1*sfXSZGZ9HvPF0LnQhOfIng.png'>

### 2.2 運算碼數量
<img src='https://miro.medium.com/v2/resize:fit:828/format:webp/1*hPJUtVnCaUtl1cPwYX6EaA.png'>

<br>

---

## Part 3. 實例介紹

### 3.1 **Space Complexity** of GET-MIN-INDEX
```c++=
int GET-MIN-INDEX(A)
{
    m = 1   // store current min.index
    for i=2 to A.length
        // update if i-th element smaller
        if A[m] > A[i]
            m = i
    return m
}
```
- array A : pointer size is <span style="color:blue">$d_1$</span> (not counting the actual input elements)
- integer m : size is <span style="color:blue">$d_2$</span>
- integer i : size is <span style="color:blue">$d_2$</span>

Total space $\implies$ 這個函數用了多少變數 $\to$ <span style="color:blue">$\ d_1 + 2d_2 \text{ (constant)}$</span> $\implies$ array 需要的空間為 <span style="color:blue">$d_1$</span> array 中的每個 element 各自需要 <span style="color:blue">$2d_2$</span> 的空間

<br>

### 3.2 **Time Complexity** of Insertion Sort
```c++=
int INSERTION-SORT(A) {
    for m = 2 to A.length
        key = A[m]
        // Insert A[m] into the sorted sequence A[1...m-1]
        i = m - 1
        while i > 0 and A[i] > key
            A[i+1] = A[i]
            i = i - 1
        A[i+1] = key
}
```


Total time $T(n)$ = $\color{blue}{d_2}n + \color{blue}{d_3}(n - 1) + \color{blue}{d_5}(n - 1) + \color{blue}{d_6}\sum_\limits{m=2}^{n}\color{red}{t_m} +  \color{blue}{d_7}\sum_\limits{m=2}^{n}(\color{red}{t_m} - 1) +  \color{blue}{d_8}\sum_\limits{m=2}^{n}(\color{red}{t_m} - 1) + \color{blue}{d_9}(n - 1)$
> $d_i$ 對應到第 $i$ 行程式碼

<br>

---
## Part 4. 複雜度概略

### 4.1 複雜度種類

- **Big-O** ( $O$ )
    是複雜度量級的**上界 (Upper Bound)**，取最緊的 Upper Bound

    > - $3n^3 + 5n^2 + 10n + 3 \in O(n^3)$
    > - $1000 \in O(1)$

- **Little-o** ( $o$ )
    是複雜度量級的**嚴格**上界。
    > - $3n^3 + 5n^2 + 10n + 3 \notin o(n^3)$
    > - $3n^3 + 5n^2 + 10n + 3 \in o(n^4)$

- **Big-omega** ( $\Omega$ )
    是複雜度量級的**下界(Lower Bound)**。

- **Little-omega** ( $\omega$ )
    是複雜度量級的**嚴格**下界(Lower Bound)。

- **Big-theta** ( $\Theta$ )
    是複雜度量級的**嚴格上下界** (完全相同)。
    > - $3n^3 + 5n^2 + 10n + 3 \in \Theta(n^3)$
    > - $3n^3 + 5n^2 + 10n + 3 \notin \Theta(n^4)$
    > - $3n^3 + 5n^2 + 10n + 3 \notin \Theta(n^2)$

<br>

### 4.2 Three Big Asymptotic Notation
<img src='https://miro.medium.com/v2/resize:fit:1194/0*AYlHuaDJIDKBXEyn.png'><br>
- $f(n)$ grows slower than or similar to $g(n)$ : ("$\le$")
    $f(n) = O(g(n))$ iff exist $c$,$n_0$ such that $f(n) \le c \cdot g(n)$ for all $n \ge n_0$

- $f(n)$ grows faster than or similar to $g(n)$ : ("$\ge$")
    $f(n) = \Omega(g(n))$ iff exist $c$,$n_0$ such that $f(n) \ge c \cdot g(n)$ for all $n \ge n_0$

- $f(n)$ grows similar to $g(n)$ : ("$\approx$")
    $f(n) = \Theta(g(n))$ iff $f(n) = O(g(n))$ and $f(n) = \Omega(g(n))$

<br>

### 4.3 實際情況

在實際運用中，我們只在意**最糟糕情況 (worst case)** $\implies$ <span style="color:red">Big-O</span>
<br>
<img src='https://i.ytimg.com/vi/bxgTDN9c6rg/hq720.jpg?sqp=-oaymwEhCK4FEIIDSFryq4qpAxMIARUAAAAAGAElAADIQj0AgKJD&rs=AOn4CLCjK6zfDlJKEW4wsVyY2auG_bOH7g'>

<br>

---

## Part 5. **Rough** Notation : Big-Theta and Big-O

<img src='https://cstaleem.com/wp-content/uploads/2023/03/Theta-Notation-%CE%98-notation.png'><br><br>

### 5.1 Representing 'Rough' by Asymptotic Behavior

$$
    \underbrace{cn^2 + bn + a}_\text{f(n)} = \underbrace{\Theta(n^2)}_\text{g(n)}
$$

- growth of $bn + a$ slower than $g(n) = n^2$ : removed by dividing $g(n)$ for large $n$
- asymptotically, two functions only differ by $c > 0$

    $\lim\limits_{n\to\infty}\frac{f(n)}{g(n)} = c$
<br>

In conclusion, for <span style="color:red">positive</span> $f(n)$ and $g(n)$,
$$
f(n) = \Theta{g(n)}\  \text{ if } \ \lim_{n\to\infty}\frac{f(n)}{g(n)} = c > 0
$$

<br>


### 5.2 Big-$\Theta$ : roughly the same
- Back to the before, definition meets criteria :
    - care about larger $n$ : yes $n \to \infty$
    - leading term more important : yes, $n + \sqrt{n} + log{n} = \Theta(n)$
    - insensitive to constants: yes, for example : $1126n = \Theta(n)$

- meaning : $f(n)$ grows roughly the same as $g(n)$

- "$=\Theta(\cdot)$" actually "$\in$"
<br>
    |              | $\sqrt{n}$ | $0.1126n$ | $n$ | $112.6n$ | $n^{1.1}$ | $e^n$ | $n+\sqrt{n}$ |
    | ------------ | ---------- | --------- | --- | -------- | --------- | ----- | ----------- |
    | $\Theta(n)?$ | N          | Y         | Y   | Y        | N         | N     | Y           |

<br>

### 5.3 Big-$O$ Notation


在實務上，我們通常只會使用到 Big-$O$。
For example, Binary Search, which best case $O(1)$ and worst case $\Theta(log n)$ for 'any' binary search task, needed time roughly no more than $log(n)$.
<br>

$f(n)$ grows slower than or similar to $g(n)$ : ("$\le$")

One side of $\Theta(\cdot)$ definition :
$$
    f(n) = O(g(n)) \iff \text{ exist positive($c_2$, $n_0$) that } f(n) \le c_2 \cdot g(n) \text{ for all } n \ge n_0
$$


<br>

---

## Part 6. Time Complexity (時間複雜度)

### 6.1 Time Complexity O(1)
```javascript=
function addUpTo(n) {
    return n * (n + 1) / 2
}
```
$\because$ 所有加減乘除的運算元都視為一樣的 $\to O(1)$
<br>

### 6.2 Time Complexity O(n)
```javascript=
function addUpTo(n) {
    let total = 0

    for (let i = 1; i <= n; i++) {
      total += i
    }

    return total
}
```

$\because \text{One loop } \to O(n)$

<br>

### 6.3 Time Complexity O(n) : independent
```javascript=
function countUpAndDown(n) {
    console.log('Going up!')

    for (let i = 0; i < n; i++) {
         console.log(i)
    }

    console.log('At the top!\nGoing down...')

    for (let j = n - 1; j>=0; j--) {
        console.log(j)
    }

    console.log('Back down. Bye!')

 }
```

$\because \text{Two loops but they are independent } \to O(n)$
<br>

### 6.4 Time Complexity O(n^2)
```javascript=
function printAllPairs(n) {
    for (var i = 0; i < n; i++) {
       for (var j = 0; j < n; j++) {
         console.log(i, j)
       }
    }
}
```
$\because \text{Nested loop(2) } \to O(n^2)$
<br>

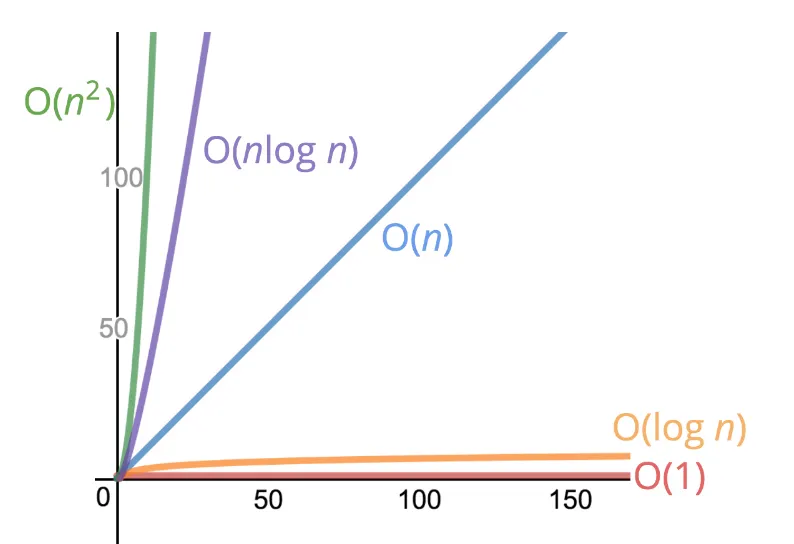

### 6.5 Types of Time Complexity
Order (由小到大) :
$$log_2n < n < nlog_2n < n^2 < n^3 < 2^n < n!$$

如圖 :
<img src='https://miro.medium.com/v2/resize:fit:828/format:webp/1*beqf0L-9RJVuJbI5A3bQ5A.png'>

<br><br>

---

## Part 7. Space Complexity (空間複雜度)
在空間複雜度中的定義 :
-   大部分的原始型別（booleans、numbers、undefined、null）都是固定的空間。
-   Strings 字串則是 O(n) space，這裡的 n 則是字串長度。
-   物件型別的陣列與物件也是 O(n) space，n 則是陣列的長度或是物件的 key 數量。

<br>

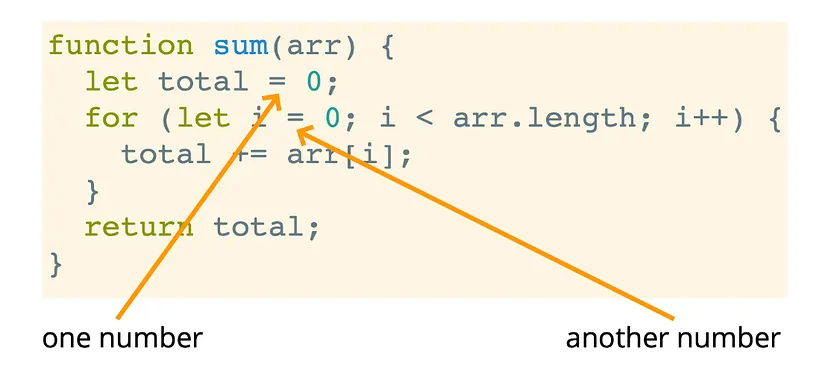

### 7.1 Space Complexity O(1)
<img src='https://miro.medium.com/v2/resize:fit:828/format:webp/1*guRnGL9cW0NjUasnKLOSsg.png'><br>

$\because$ 在上圖中，前者是assign一個變數，後者是assign另一個變數，兩者獨立且變數所需的空間為 1 $\to O(1)$

<br>

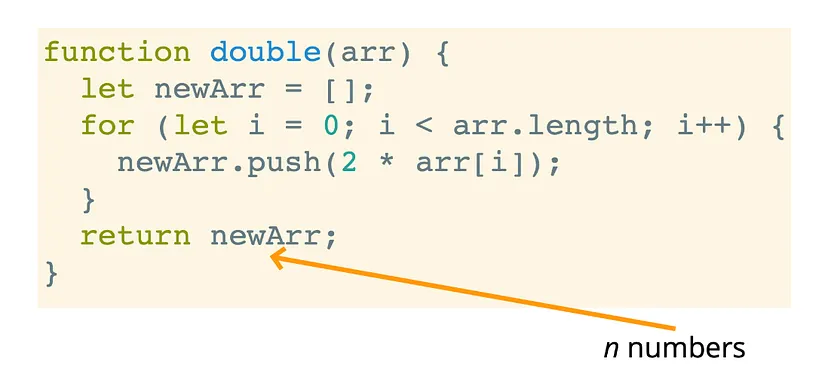

### 7.2 Space Complexity O(n)
<img src='https://miro.medium.com/v2/resize:fit:828/format:webp/1*Jp5b635BiAEk0jBB_60Q6w.png'>

$\because$ 每當原始陣列擴展 $n$ 倍，新陣列會需要 $n$ 倍的空間 $\to O(n)$

<br>

---

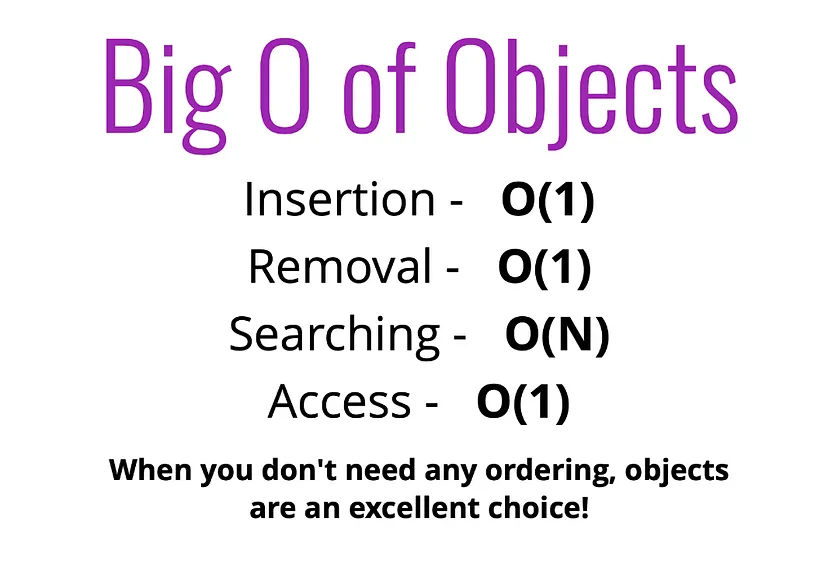

## Part 8. Big-O of Objects
<img src='https://miro.medium.com/v2/resize:fit:828/format:webp/1*qeJ3D_PY5Hdtw1UqutYuZg.png'><br>

#### 常見的物件方法

```javascript=
var obj = {
    'Name': '3nGryCa7',
    'HasJob': true,
    'FavFood': ['gourmet', 'coffee']
}
```

-   **Object.keys －O(n)**
    將物件中的所有 key 值以陣列方式回傳。
    ```javascript=
    Object.keys(obj);
    // Output -> ['Name', 'HasJob', 'FavFood']
    ```
-   **Object.values－O(n)**
    將物件中的所有 value 值以陣列方式回傳。
    ```javascript=
    Object.values(obj);

    // Output -> ['3nGryCa7', true, Array(2)]
    ```
-   **Object.entries－O(n)**
    將物件中的所有 key-value pairs 若干陣列方式回傳。
    ```javascript=
    Object.entries(obj);
    // Output -> { 'Name': '3nGryCa7', 'HasJob': true, 'FavFood': ['gourmet', 'coffee'] }
    ```
-   **hasOwnProperty－O(1)**
    根據物件內是否有某項屬性回傳 Boolean 值，因此只需要檢查物件的某個 key 是否有對應的回傳資料。
    ```javascript=
    obj.hasOwnProperty('Name');
    // Output -> true
    ```
