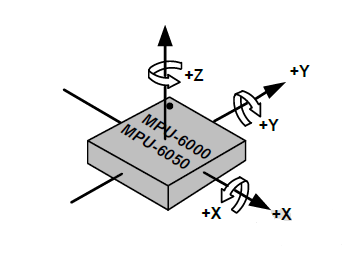

訊號與系統第三組--第三題(球的速度轉速角度) === contribute by <`李東霖`,`張文瑋`,`江家銘`,`趙韓信`> **如需要看程式碼請到 [github](https://github.com/csielee/2017SignalSystem_Team3_SmartBall)** **使用 MPU6050 dmp 教學請到 [DMP教學](https://hackmd.io/s/HkSQOMX1b)** ## 題目 3a. 如何測量投球的速度。 3b. 如何測量球旋轉的轉速與角度。 [Gyroscopes and Accelerometers on a Chip](http://www.geekmomprojects.com/gyroscopes-and-accelerometers-on-a-chip/) ## 方向 * 六軸感測計 * 利用三軸加速度測量速度 * 利用三軸陀螺儀測量轉速跟角度 * 配合arduino * 無線通訊 * 電源獨立 ## 短期目標 ### 2017/3/1 - [x]決定材料 - [x]使用 gy-521 - [x]使用 Arduino UNO ### 2017/3/29 - [x]DEMO - [ ]如何驗證做出來的數據是對的 - [x]做成一個球 - [x]測量開始跟結束如何偵測 - [ ]教大家如何做 DMP ### 2017/4/5 - [x]Arduino 傳出 加速度 四元數 角速度 - [x]改用 NANO 配上 藍芽 - [x]設計外殼 - [x]設計獨立供電 ## 材料 - Arduino Nano - GY-521(MPU6050) - HC-05 藍芽模組 - 扭蛋殼 - 9V 電池 - 電壓轉換模組 - 麵包版 - 杜邦線跟單芯線 ### 微控制器(MCU) or 微處理器(MPU) **Arduino UNO** ![Arduino UNO](https://www.arduino.cc/new_home/assets/illu-arduino-UNO.png) **Arduino Nano** ![](http://www.arduino.org/media/k2/galleries/82/A000005-Arduino-Nano-1front.jpg =300x) **Arduino Mini** ![](https://i.stack.imgur.com/oOtkU.png) ### 感測元件 這篇文章提到很多感測的原理跟公式 還有誤差的問題,感覺我們非常需要 [從零開始做四軸飛行器 (五) - 感測器原理](http://kitsprout.logdown.com/posts/335386) MPU 6050 ![](https://www.taiwaniot.com.tw/wp-content/uploads/2015/11/MPU6050_%E8%BD%B4%E5%90%91%E5%AE%9A%E4%BD%8D.png) **GY - 86** 整合的模組,有十軸 * Invensense MPU-6050 6軸IMU(3軸加速度計+3軸陀螺儀) * Honeywell HMC-5883L 3軸地磁計 * Measurement Specialties MS-5611 氣壓計 [Arduino 使用I2C讀取GY-86 十軸感測器(一)硬體](http://skybow.pixnet.net/blog/post/107921314-%5Barduino%5D%E4%BD%BF%E7%94%A8i2c%E8%AE%80%E5%8F%96gy-86-%E5%8D%81%E8%BB%B8%E6%84%9F%E6%B8%AC%E5%99%A8(%E4%B8%80)%E7%A1%AC%E9%AB%94) **GY - 80** 整合的模組,有十軸 * 加速度計 ADXL345 * 陀螺儀 L3G4200 * 電子羅盤 HMC5883 * 氣壓計 BMP085 [讀取 GY-80 模組:加速度計(ADXL345) 陀螺儀(L3G4200) 電子羅盤(HMC5883) 氣壓計(BMP085)](http://wukcsoft.blogspot.tw/2014/06/read-gy-80.html) **GY - 521** 只有MPU6050,有六軸 * 加速度 陀螺儀 MPU6050 [Arduino範例21:利用MPU6050取得空間姿態的row data](http://ming-shian.blogspot.tw/2014/05/arduino21mpu6050row-data.html) [筆記, MPU-6050, google 搜尋與實驗心得 (MPU-6050, Arduino)](http://gogoprivateryan.blogspot.tw/2014/07/mpu-6050-google.html) [STM32 MPU6050 陀螺儀/加速器換算方式](http://smlie-blog.blogspot.tw/2013/11/stm32-mpu6050.html) [MPU6050 DataSheet](http://43zrtwysvxb2gf29r5o0athu.wpengine.netdna-cdn.com/wp-content/uploads/2015/02/MPU-6000-Datasheet1.pdf) ### 無線通訊 主要考量點在傳輸速率,跟使用難度 ### 電源配置 因為無線傳輸需要穩定電流,感測器使用arduino本身電流輸出應該就OK了 ## 3a-測量球的速度 ### 電路配置 ![](https://i.imgur.com/1VAnJFy.jpg) ### 取得加速度 因為在 MPU6050 靜止不動時 實際上有受到一個重力跟一個正向力 但 MPU6050 實際上無法感受到重力,而是感受除了外力的靜力和 所以靜止不同在 Z 軸會感測到 1g 的向上加速度 另外當感測器旋轉,就會造成相同方向的靜力和影響在不同的軸 所以當靜止不同且旋轉 MPU6050,就會發現 xyz 都有可能一直變化 因此需要自己補正這一塊,去取得我們想要的 ==球加速度== :::info 另外補充 MPU6050 的測量單位 感測器的精確度是 16 bits 感測範圍則有 +-2g、+-4g、+-8g、+-16g ::: ### 取得真實加速度 by DMP 利用 MPU6050 裡的 DMP(digital motion processor) 去將抵銷重力跟旋轉的影響後的 xyz 加速度取出來 DMP 是內嵌在 MPU6050 上,除了能夠得到處理後的加速度 也能得到很多其他數值,能夠有效降低微控制器的負擔,精準跟穩定度也能上升 參考範例 code ,以下是我們將 MPU6050 的加速度取出來 並自行加入 卡爾曼濾波 ``` 程式碼請看 github ``` :::info 補充卡爾曼濾波 參考自 [卡爾曼濾波器(Kalman Filter) 說明與介紹](http://rexkingworld.blogspot.tw/2013/05/kalman-filter.html) x 是前一筆資料 k、p 是卡爾曼係數 q 是預期誤差 r 是感測器誤差 ```clike p=sqrt(q*q+r*r); double KalmanFilter_Update(double value) { p += q; k = p / (p + r); x += k * (value - x); p *= (1 - k); return x; } ``` ::: ### 利用 processing 顯示數據並計算速度 我們將加速度資料經由序列埠傳給電腦,並且將數據用圖形表達出來 以下是 processing 的 code 也是參考修改得來 ``` 程式碼請看 github ``` ### 畫出來的圖形 ![](https://i.imgur.com/3UQpobp.png) --- ## 3b-測量球的轉速與角度 ### 四元數 跟 歐拉角 差別 [away3d Quaternion 使用四元數來處理空間中的旋轉](http://reader.roodo.com/sayaku/archives/19544672.html) **歐拉角的演示跟問題** {%youtube zc8b2Jo7mno %} - 四元數 - x,y,z - 空間中的向量 - w - 以 x y z 向量當旋轉軸旋轉的角度 - 歐拉角 - 三個數值表示三個平面的旋轉角 - 會有萬向死鎖 (Gimbal Lock) 如上面影片所演示 [三維旋轉表示法 - 歐拉角、旋轉矩陣、旋轉向量、四元數](http://silverwind1982.pixnet.net/blog/post/258069682-%E4%B8%89%E7%B6%AD%E6%97%8B%E8%BD%89%E8%A1%A8%E7%A4%BA%E6%B3%95---%E6%AD%90%E6%8B%89%E8%A7%92%E3%80%81%E6%97%8B%E8%BD%89%E7%9F%A9%E9%99%A3%E3%80%81%E6%97%8B%E8%BD%89%E5%90%91) ### Quaternion - Quaternion The quaternions are a number system applied to mechanics in three-dimensional space, generally represented in the form a + bi + cj + dk (real part of the quaternion a, and a 3-vector u = (b,c,d) = bi+cj+dk in Euclidean 3d space). - Quaternion vs. other representations of rotations Quaternions have an advantage of its compactness (4 numbers) compared to matrix representations of rotations where the matrix are consisted of 9 numbers. Furthermore, for a given axis and angle, one can easily construct the corresponding quaternion, and conversely, for a given quaternion one can easily read off the axis and the angle while avoiding the problem of gimbal lock with fourth rotational axis. - The problem of Gimbal lock The problem of gimbal lock refers to the loss of one degree of freedom in a three dimensional system when two gimbals rotate around the same axis. https://en.wikipedia.org/wiki/Gimbal_lock - Rotation quaternion In 3-dimensional space, according to Euler’s rotation theorem, any rotation in three dimensions can be represented as a combination of a vector and a scalar. When quaternions are used to represent rotation, a rotation in 3-d with axis v and angle α can be represented as conjugation with the unit quaternion z = cos(α/2) + sin(α/2)v/||v|| (or with any real multiple of z). It provides a convenient mathematical notation for representing orientations and rotations of objects in three dimensions. Thus, quaternions give a simple way to encode axis-angle representation in four numbers and vice versa. From quaternion to 3D rotation: http://www.fact-index.com/q/qu/quaternions_and_spatial_rotation.html https://www.youtube.com/watch?v=7OgUYXRvZGE https://www.youtube.com/watch?v=SRaxNOhhW4Q&t=622s https://ccjou.wordpress.com/2014/04/23/%E5%9B%9B%E5%85%83%E6%95%B8%E8%88%87%E4%B8%89%E7%B6%AD%E7%A9%BA%E9%96%93%E6%97%8B%E8%BD%89/ ### 利用 DMP 取得更多數據 後來我們去認真研究 MPU6050 的 DMP 從 [I2C-MPU6050原始碼](https://github.com/jrowberg/i2cdevlib/tree/master/Arduino/MPU6050) 了解到 原來 dmp 只有幫忙處理好 加速度 角速度 跟 四元數四個數值 其餘都是函式庫進行計算換轉換 底下是從 dmp 取得的封包(為一個 8 bits 陣列) |標號|內容|標號|內容|標號|內容|標號|內容| |:---:|:---:|:---:|:---:|:---:|:---:|:---:|:---:| |**0~15**|**四元數**| |0~3|w|4~7|x|8~11|y|12~15|z| |**16~27**|**角速度**|16~19|x|20~23|y|24~27|z| |**28~39**|**加速度**|28~31|x|32~35|y|36~39|z| ==因此我們比起之前,讓 Arduino 多輸出 角速度 跟 四元數== ### 利用 藍芽 達成無線 一開始使用 HC-05 進行改造 ![](http://thumbs3.ebaystatic.com/d/l225/m/m_3rOcbwv-labQsna1dWlRg.jpg) 但是發現一個嚴重的問題 :::danger 藍芽傳輸的時間間隔無法達到 10 ms 會介在 10ms 到 100ms ,平均 70 ms ::: 因此無法將 gy-521 的資料完整的傳輸到電腦 不過我們認為這是傳統藍芽上的限制 因為 HC-05 只有支援藍芽2.1+EDR 我們打算嘗試使用 藍芽4.0 來解決這個問題 :::danger 後來買到的藍芽 4.0 模組弄不太出來 只好先降低時間間隔,改成每 100 ms 一筆資料 測出來的時間是 OK 的 ::: ### 將 UNO 換成 NANO 減少體積 考慮到 UNO 跟 NANO 都是使用同一顆晶片 ATMEGA328P 因此我們認為可以無痛轉移 但是卻遇到當初沒想到的問題 :::danger 剛開始,我們認為每 10 ms 會有一份數據 可是實際上,電腦 processing端 是每 20 ms 得到一份數據 後來一律改成 100 ms 一筆,因此避開這個問題 ::: 但可以慶幸的是,從 UNO 到 NANO 非常輕鬆! ### 製作獨立電源 ### 塞進一顆球 ### 電路圖 ![](https://i.imgur.com/Bgy3v4J.png) ### 畫出的圖形 #### 加速度 ![](https://i.imgur.com/Y8I96TF.png) #### 角度 ![](https://i.imgur.com/6PCHVXe.png) #### 轉速 ![](https://i.imgur.com/5a8ztyv.png) ## 實測紀錄 * 角速度測量: ![](https://i.imgur.com/YaozGeD.png) **測量方式:** 將事先量好為0.5公尺的繩子綁在球體頂端,並利用圓周運動原理可以輕易算出球到達底端理論值的角速度,再與實際測量數據做比較。 **利用簡易物理公式可以推得理論角速度:** $$mgL = {1\over2}*mv^2------1$$ $$F_c = {mv^2 \over L} = mLw^2------2$$ 將1式代入2式可以求得角速度為: $$w = \sqrt{2g \over L}$$ 因此以半徑0.5m之繩子綁著球做此運動可以算出理論底端之角速度為 6.26 rad/s = 358.729 ^o^/s。 *利用角速度也可推得球體的切線速度: $$v=Lw$$ 理論速度為:3.1305 m/s 十次實驗得到數據: | 次數 | 得到數據(^o^/s) | 次數| 得到數據 |推算速度(m/s)| |:------:|:--------:|:------:|:-------:|:-:| | 1 | 374.44 | 6 | 337.04|2.9412 | 2 | 353.77 | 7 | 404.42|3.5292 | 3 | 407.38 | 8 | 415.21|3.6233 | 4 | 438.50 | 9 | 473.32|4.1304 | 5 | 421.16 | 10| 391.12|3.4131 |平均|401.639|誤差|42.91 *誤差推測:藍芽傳輸速率為0.1秒傳送一筆資料,推測在實驗過程可能會每次記錄到的位置差異有點大,因此我們試著多做幾次實驗來減少誤差。 * 速度測量: 由於上次的實驗並未利用藍芽模組將數據傳出,因此這次我們補充上一次的實驗。 **測量方式:** 繼續沿用上個實驗0.5公尺的繩子,將球自由落體0.5公尺,可以算出理論值速度,再與得到的數據做比較。 $$V^2 = V_0^2 + 2gS$$ $$V = \sqrt{2gS}$$ 理論速度為:3.1305 m/s 十次實驗得到數據: | 次數 | 得到數據(m/s) | 次數| 得到數據(m/s) | |:------:|:--------:|:------:|:-------:| | 1 | 1.082 | 6 | 1.180| | 2 | 0.999 | 7 | 1.100| | 3 | 1.094 | 8 | 1.160| | 4 | 1.060 | 9 | 1.082| | 5 | 1.188 | 10| 1.041| |平均|1.0986|誤差|-2.0319 *誤差推測:由於得到的結果與理論值誤差過大,因此我們推斷是因為藍芽傳送速率的關係,由於每0.1秒傳送一筆資料,若用加速度積分取速度會少計算到許多資料。 ## 參考資料 * [自動棒球的概念](http://gogoprivateryan.blogspot.tw/2014/08/1-arduino-mpu-6050-hc-06.html) * [自動棒球的拋接數據分析](http://gogoprivateryan.blogspot.tw/2014/10/3-arduino-nanowii-microsd-mpu6050.html) * [從零開始做四軸飛行器 (五) - 感測器原理](http://kitsprout.logdown.com/posts/335386) * [Gyroscopes and Accelerometers on a Chip](http://www.geekmomprojects.com/gyroscopes-and-accelerometers-on-a-chip/) * [I2C-MPU6050原始碼](https://github.com/jrowberg/i2cdevlib/tree/master/Arduino/MPU6050)
