###### tags: `jptw` `thesis` `technology` `jenkins` `cicd`
# Notes for Jenkins

## Install Jenkins on Ubuntu
> Ref:
> [1] [How To Install Jenkins on Ubuntu 18.04](https://www.digitalocean.com/community/tutorials/how-to-install-jenkins-on-ubuntu-18-04)
> [2] [Installing Jenkins on macOS](https://www.macminivault.com/installing-jenkins-on-macos/)

### Installation
Install Java

$ sudo apt update
$ sudo apt install openjdk-8-jdk

Install Jenkins

// add the repository key
$ wget -q -O - http://pkg.jenkins-ci.org/debian/jenkins-ci.org.key | sudo apt-key add -
$ sudo sh -c 'echo deb http://pkg.jenkins-ci.org/debian-stable binary/ > /etc/apt/sources.list.d/jenkins.list'

// install Jenkins
$ sudo apt install Jenkins
$ sudo systemctl start jenkins
$ sudo sysyemctl status jenkins

Open firewall

$ sudo ufw allow 8080
$ sudo ufw status

### Set-up
> IP address: http://localhost:8080


$ sudo cat /var/lib/jenkins/secrets/initialAdminPassword

and follow [1] step-by-step.

## Setup with Github Webhook
> Ref:
> *[1] [原始碼管理與建置觸發程序](https://tso-liang-wu.gitbook.io/learn-ansible-and-jenkins-in-30-days/jenkins/jenkins/jenkins-scm-and-trigger)
> *[2] [[CI]設定jenkins連結GitHub Private Repo by Webhook](https://medium.com/@BuzonXXXX/ci-設定jenkins連結github-private-repo-111c53d29047)
> *[3] [Build A Django CI/CD Pipeline using Jenkins](https://www.codementor.io/@vahiwe/build-a-django-ci-cd-pipeline-using-jenkins-1avemkw6hq)
> [4] [Git | Jenkins plugin](https://plugins.jenkins.io/git/)
> [5] [透過 GitHub Webhook 讓你 push code 到 Github 就會自動觸發本地 Jenkins Pipeline](https://zoejoyuliao.medium.com/透過-github-webhook-觸發本地-jenkins-pipeline-讓你-push-code-到-github-就會自動跑-ci-cd-7c4bd7a22446)
> [6] [[Day 16] 我的第一個 Jenkins Job](https://ithelp.ithome.com.tw/articles/10194160)

### Jenkins
原始碼管理
Repository Url: https://github.com/{username}/{repo_name}.git
https://**{token}**@github.com/{username}/{repo_name}.git

### Github
:::info
Settings > Developer settings > Personal access tokens > **Generate new token**
:::
and ==copy the **token**==
:::info
Project Repo > Settings > Webhook > Add webhook
:::
:::warning
http://127.0.0.1:8080/github-webhook/ cannot be connected
IP address must be public IP or domain (or use **[ngrok](#Ngrok)**)
:::

### Ngrok
> Download: https://ngrok.com/download

$ sudo wget "https://bin.equinox.io/c/4VmDzA7iaHb/ngrok-stable-linux-amd64.zip"
$ unzip /path/to/ngrok.zip
$ cd /path/to/ngrok

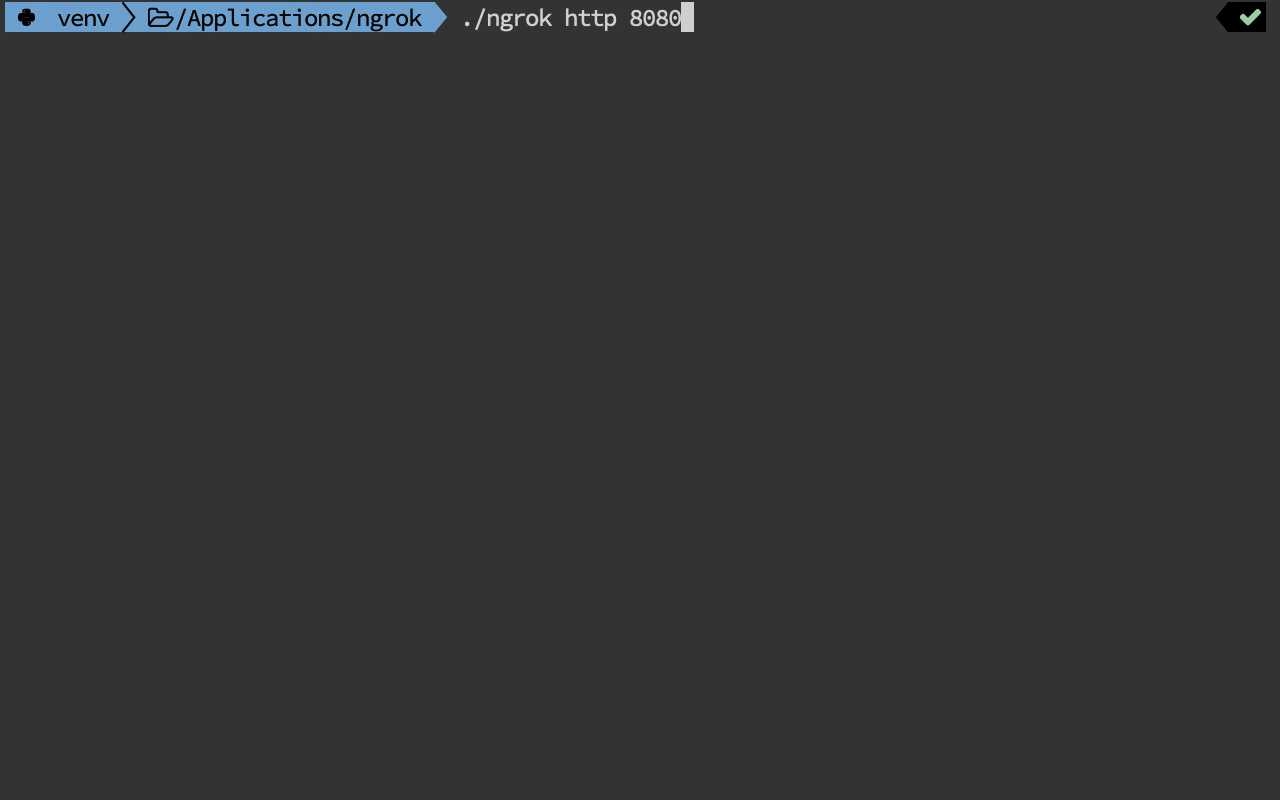

$ ./ngrok http 8080


> Ref:
> [1] [透過 GitHub Webhook 讓你 push code 到 Github 就會自動觸發本地 Jenkins Pipeline](https://zoejoyuliao.medium.com/透過-github-webhook-觸發本地-jenkins-pipeline-讓你-push-code-到-github-就會自動跑-ci-cd-7c4bd7a22446)
