# Modified Wisckey - Version Table
[BACK TO HOME](https://hackmd.io/JvhNsCKaT3uIUe0e74urrw?both)
:::warning
* 原定以adjecency list 實作

預定更改為hashmap:

:::

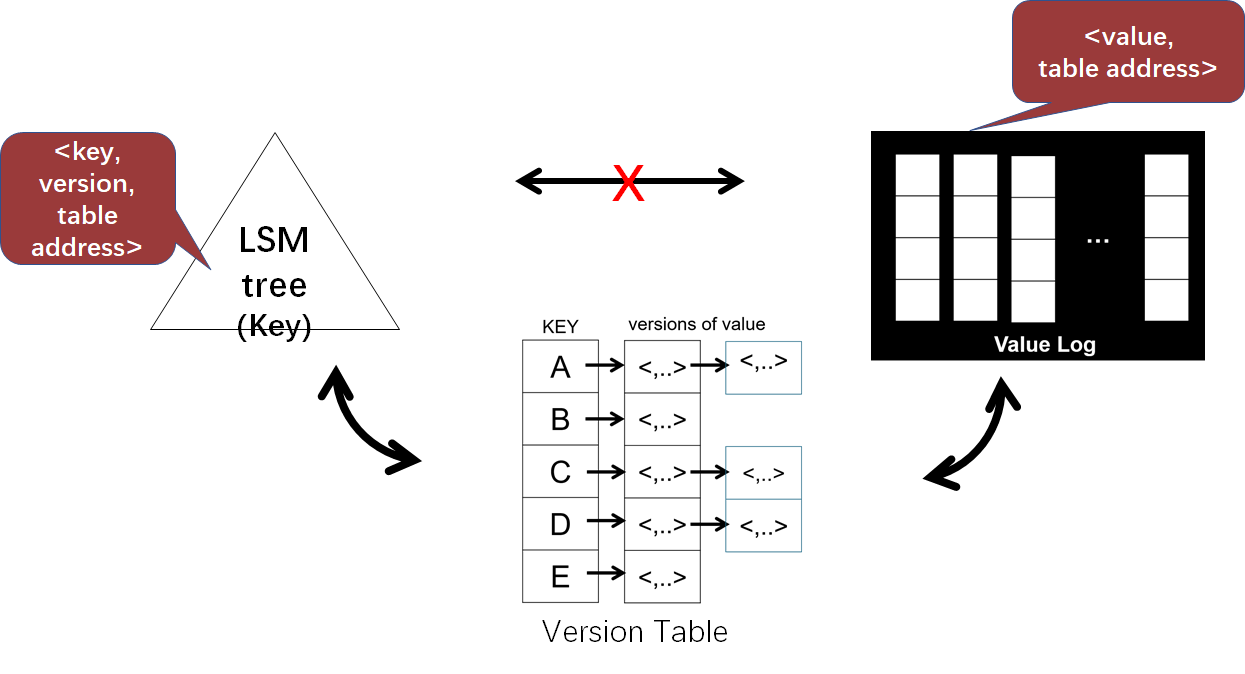

## 基礎架構:LSM tree/Version Table/Value Log
LSM不需要再另外存有關value log的資訊透過Version Table與Value Log溝通，新舊value都會在value log裡，方便刪除要刪掉key對應到的所有value以達到Security Deletion目標

struct Version_Table_node
{
    uint64_t version;
    string value_address;
    size_t size;
    Version_Table_node = NULL;

};

struct Version_Table_key
{
    Slice key;
    string hotness;
    Version_Table_node info = NULL;
}
//Wisckey/include/leveldb

## 資料寫入[流程已更新]
**wisckey_set -> leveldb_set -> DBImpl::Put -> DB::Put -> DBImpl::Write**

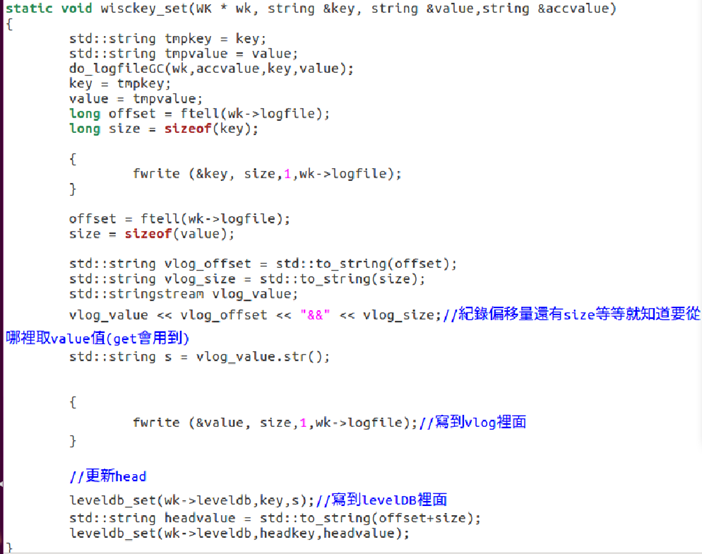

### wisckey_set


### leveldb_set
Stringstream紀錄offse和size，加上&&符號方便切割，這些資訊寫到leveldb_set function
string s 包含了offset和size等value Log位置資訊代替value傳到leveldb_set function

leveldb_vset(DB *db, string key, string value)
{
    size_t idx = 0;
    VTable_mutex.lock();
    Version_Table_node new_info;
    new_info.version = 1; //not so sure
    new_info.value_address = value;

    bool key_exist_in_table = false;
    for(idx =0;idx<Version_Table.size();idx++)
    {
        if(Version_Table[idx].key == key) //duplicated key
        {
            key_exist_in_table = true;
            break;
        }
    }
    //idx is the index of existing key or the last index(not found)
    if(!key_exist_in_table) //here comes new key
    {
        table_size ++;
        idx = table_size; //extend version table

        Version_Table_key new_entry;
        new_entry.key = key;
        new_entry.hotness = (MBF.checkHot(key))?'1':'0';
        new_entry.info = new_info;
        Version_Table.pushback(new_entry);
    }
    else //key already exist in Version Table
    {
        //Traverse
        Version_Table_node tmp = Version_Table[idx].info;
        while(tmp->next != NULL) tmp = tmp->next; //move to the node with newest value info
        tmp->next = new_info;

    }
    VTable_mutex.unlock();

    Writebatch wb;
    Status s;
    WriteOptions wopt;
    size_t *table_address = Version_Table[idx]; //pointer to array
    s = db->Put(wopt, key, table_address);
    assert(s.ok());

}

key struct 組成的vector作為Version table
每個key帶有linked list 結構存value資訊(version_table_node)
先把value資訊紀錄的一個新的node裡，接著用traverse檢查key是否存在
* 如果是新key 在global variable的 table size+1 然後key vector pushback新的key
* 否則idx會是key所在位置,將新的資訊串到此key再table上對應的linked-list最後面

db put function傳入的是(key, pointer to table address)

### DBImpl::Put

Status DBImpl::Put(const WriteOptions& o, const Slice& key, const Slice& val) {
  return DB::Put(o, key, val);
}

### DB::Put

Status DB::Put(const WriteOptions& opt, const Slice& key, const Slice& value) {
  WriteBatch batch;
  /*In levelDB, getfunction is disable.
    So, I use this function to update head and tail.
  */


  if(key.data()==headkey){
  	head = std::atoi(value.data());
  }else if(key.data()==tailkey){
  	tail = std::atoi(value.data());
  }
  batch.Put(key, value);
  return Write(opt, &batch);
}

寫入的key value首先被封裝到WriteBatch 按照一定格式記錄了:sequence, count, 操作類型(Put or Delete)，key/value的長度及key/value本身

struct DBImpl::Writer {
  Status status;
  WriteBatch* batch;
  bool sync;
  bool done;
  port::CondVar cv;

  explicit Writer(port::Mutex* mu) : cv(mu) { }
};

DBImpl::Writer封裝了 mutex cond 等同步相關

### DBImpl::Write

Status DBImpl::Write(const WriteOptions& options, WriteBatch* my_batch) {
  Writer w(&mutex_);
  w.batch = my_batch;
  w.sync = options.sync;
  w.done = false;

  MutexLock l(&mutex_);
  writers_.push_back(&w);


  while (!w.done && &w != writers_.front()) {
    w.cv.Wait();
  }
  if (w.done) {
    return w.status;
  }

  // May temporarily unlock and wait.
  Status status = MakeRoomForWrite(my_batch == NULL);
  uint64_t last_sequence = versions_->LastSequence();
  Writer* last_writer = &w;
  if (status.ok() && my_batch != NULL) {  // NULL batch is for compactions
    WriteBatch* updates = BuildBatchGroup(&last_writer);
    WriteBatchInternal::SetSequence(updates, last_sequence + 1);
    last_sequence += WriteBatchInternal::Count(updates);

    // Add to log and apply to memtable.  We can release the lock
    // during this phase since &w is currently responsible for logging
    // and protects against concurrent loggers and concurrent writes
    // into mem_.
    {
      mutex_.Unlock();
      status = log_->AddRecord(WriteBatchInternal::Contents(updates));
      bool sync_error = false;
      if (status.ok() && options.sync) {
        status = logfile_->Sync();
        if (!status.ok()) {
          sync_error = true;
        }
      }
      if (status.ok()) {
        status = WriteBatchInternal::InsertInto(updates, mem_);
      }
      mutex_.Lock();
      if (sync_error) {
        // The state of the log file is indeterminate: the log record we
        // just added may or may not show up when the DB is re-opened.
        // So we force the DB into a mode where all future writes fail.
        RecordBackgroundError(status);
      }
    }
    if (updates == tmp_batch_) tmp_batch_->Clear();

    versions_->SetLastSequence(last_sequence);
  }

  while (true) {
    Writer* ready = writers_.front();
    writers_.pop_front();
    if (ready != &w) {
      ready->status = status;
      ready->done = true;
      ready->cv.Signal();
    }
    if (ready == last_writer) break;
  }

  // Notify new head of write queue
  if (!writers_.empty()) {
    writers_.front()->cv.Signal();
  }

  return status;
}

資料被寫入到writers_直到其他thread已经幫忙完成了Writer w的寫入且搶到mutexlock並且位於writers_最前端
status = WriteBatchInternal::InsertInto(updates, mem_)
寫入memtable

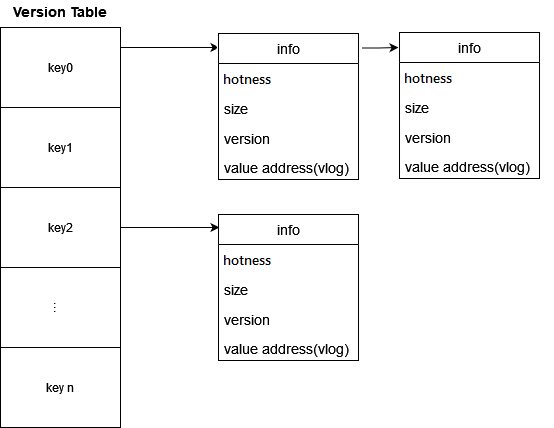

## hashMap版本
### Map<key, vector<value_info>>

typedef struct info
{
    string hotness;
    unsigned long version;
    string value_address;
    size_t size;
};
static map<string, vector<info>> Version_Table;

#### 資料寫入
lab2_common.h
leveldb_vset

static void leveldb_vset (DB db, string &key, string &value)
{
    VTable_mutex. lock();
    info new_info;
        new_info.hotness (MBF.checkHot(key))?'1':'0';
        new_info.version = 1;
        new_info.value_address = value; //vlog addr

    size_t idx=0;  //Idx is to record version table address
    vector<info> tmp;

    if(Version Table.find(key)== Version Table.end())
    {
        // new key
        tmp.push_back(new_info);
    }
    else
    {
        //key already exist in Version Table
        tmp = Version Table [key];
        new_info.version = tmp.size()+1;
        idx = tmp.size(); //vector index
        tmp.push_back(new_info);
    }
    Version Table [key] = tmp;
    VTable_mutex.unlock();

    WriteBatch wb;
    Status s;
    WriteOptions wopt;

    //Pointer to Array
    info *table_address = &Version_Table[key][idx];
    s = db->Put(wopt,key,table_address);
    assert(s.ok());

}

#### 資料讀取

static bool wisckey_vget (WK * wk, string &key, string &value, string &accvalue)
{
    std::string tmpkey = key;
    //compaction
    do_logfileGC (wk, accvalue, key, value);
    key = tmpkey;
    cout << "\n\t\tGet Function\n\n";
    cout << "Key Received: " << key << endl;
    //string offsetinfo;
    //bool found = leveldb_get(wk->leveldb, key, offsetinfo);
    info *tableaddr_info; //table address
    bool found
    leveldb_vget (wk->leveldb, key, tableaddr_info);
    if (found) {
        cout << "offset and Length: " <<*(tableaddr_info).value_address <<offset value size<<endl; //call by address
    }
    else {
        cout << "Record: Not Found" << endl;
        return false;
    }


//拆解offset資訊
    std::string value_offset;
    std::string value_length;
    //std::string s= offsetinfo;
    std::strings = *(tableaddr_info).value_address;
    std::string delimiter = "&&";
    size_t pos = 0;
    std::string token;

    while ((pos= s.find(delimiter)) != std::string::npos) {
    token=s.substr(0, pos);
    value_offset= token;
    s.erase(0, pos + delimiter.length());
    }
    value_length = s;
